Total Time Since New | 1,595 Hours (as of December 4, 2022) |
Total Landings Since New | 1,808 Landings |
Entry into Service Date | January 2013 |
Program Coverage | Smart Parts Plus |
Maintenance Tracking | CAMP |
Certification | TCCA |
Left Engine | Right Engine | ||
Description | General Electric CF34-3B | ||
Serial Number(s) | 801109 | 801110 | |
Total Hours Since New | 1,595 Hours | 1,595 Hours | |
Total Cycles Since New | 1,830 Cycles | 1,830 Cycles | |
Program Coverage | GE OnPoint |
Description | Honeywell GTCP36-150(CL) |
Serial Number | P-331 |
APU Total Time Since New | 2,100 Hours |
Program Coverage | MSP Gold |

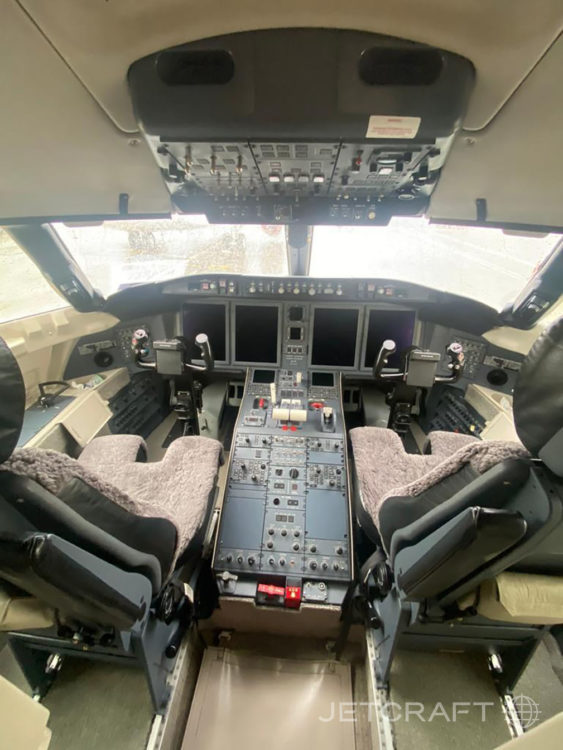

The Bombardier Challenger 605 is equipped with an integrated, Collins Rockwell Pro Line 21 Advanced avionics suite. A general summary of this aircraft’s avionics suite is as follows:
Type of Unit | Quantity | Description | ||
EFIS (Electronic Flight Instrument System) | Four | Collins AFD-5220E | ||
FMS (Flight Management System | Dual | Collins FMC-6200 | ||
IRS (Inertial Reference System) | Dual | Honeywell Laseref V | ||
GPS (Global Positioning System) | Dual | Collins GPS-4000S | ||
ADC (Air Data Computer) | Dual | Collins ADC-850E | ||
NAV (Navigation Radio) | Dual | Collins NAV-4000 | ||
DME (Distance Measuring Equipment) | Dual | Collins DME-4000 | ||
VHF COM (Very High Freq. Communication) | Dual | Collins VHF-4000 | ||
HF COM (High Freq. Communications) | Dual | Collins HF-9031A | ||
SATCOM (Satellite Communications) | Single | Iridium ICS-200 | ||
RADAR ALT (Radar Altimeter) | Single | Collins ALT-4000 | ||
XPNDR (Transponder) | Dual | Collins TDR-94-D | ||
GPWS (Ground Proximity Warning System) | Single | Honeywell Mark V | ||
TCAS (Traffic Collision Avoidance System) | Single | Collins TTR-4000 TCAS II | ||
LSS (Lightening Detection System) | Single | L3 WX-1000 | ||
ELT (Emergency Locator Transmitter) | Single | Artex C406N | ||
CVR (Cockpit Voice Recorder | Single | L3 Communications CVR | ||
FDR (Flight Data Recorder) | Single | L3 Communications FDR |

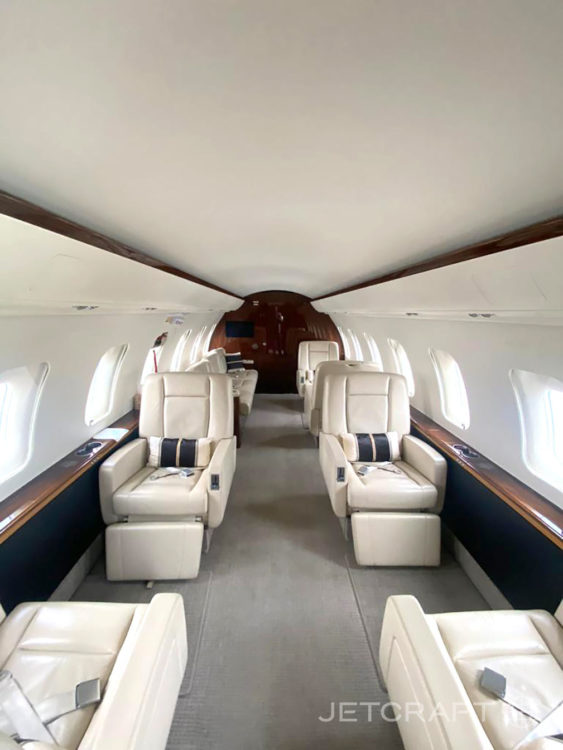

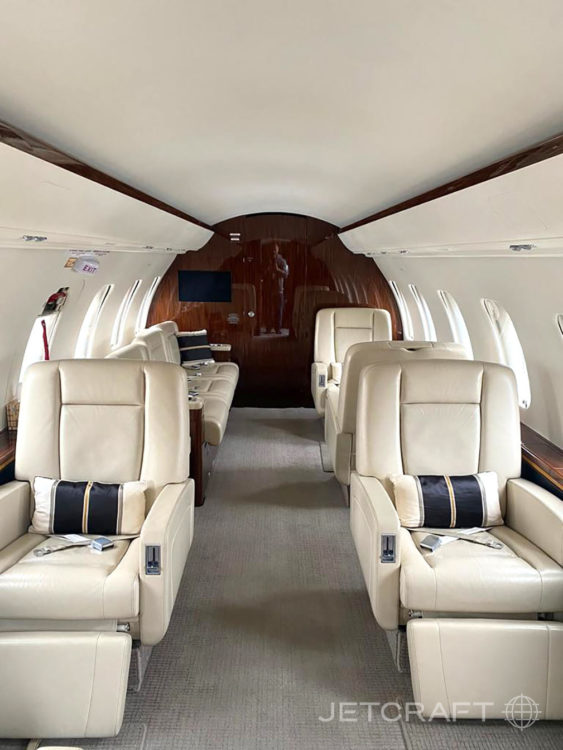

Number of Passengers | Ten (10) |

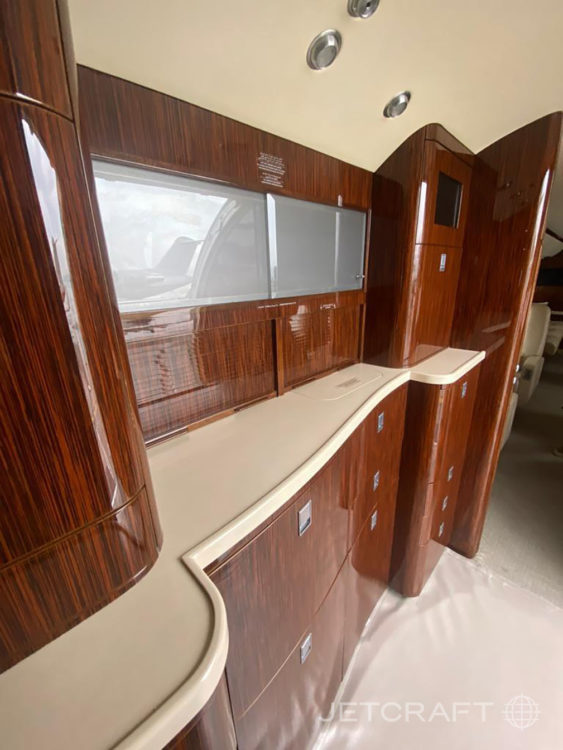

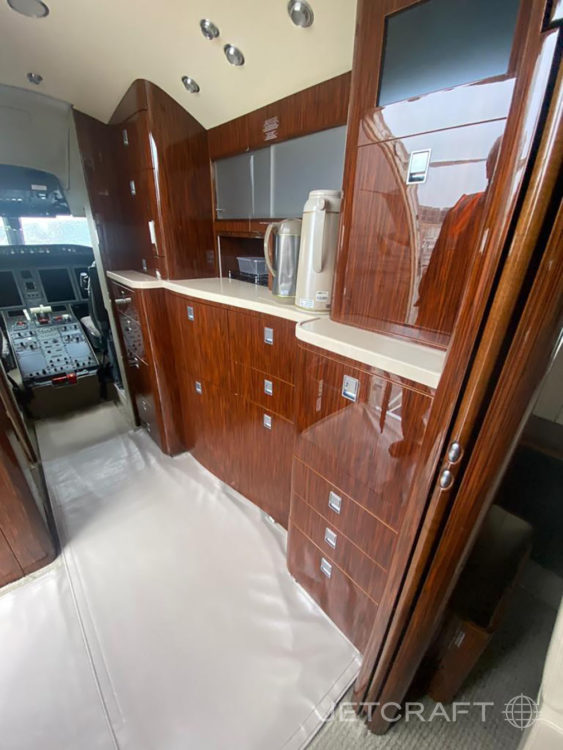

Galley Location | Forward |

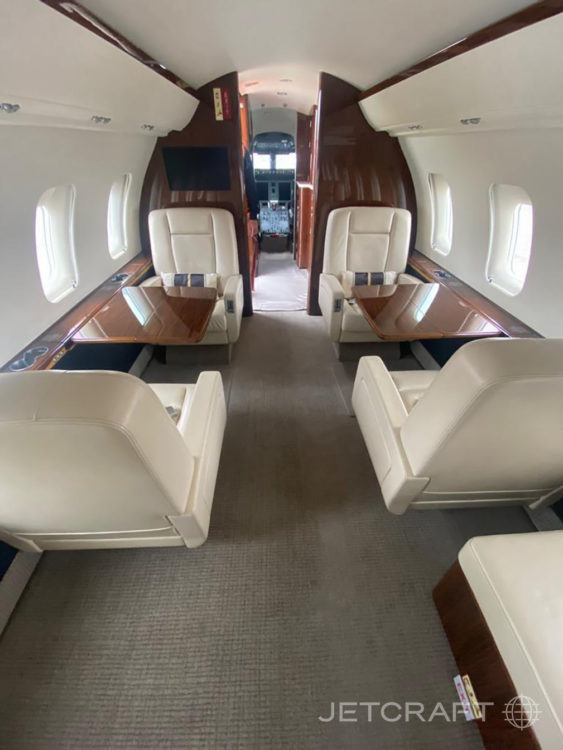

Forward Cabin Configuration | Four (4) Place Club |

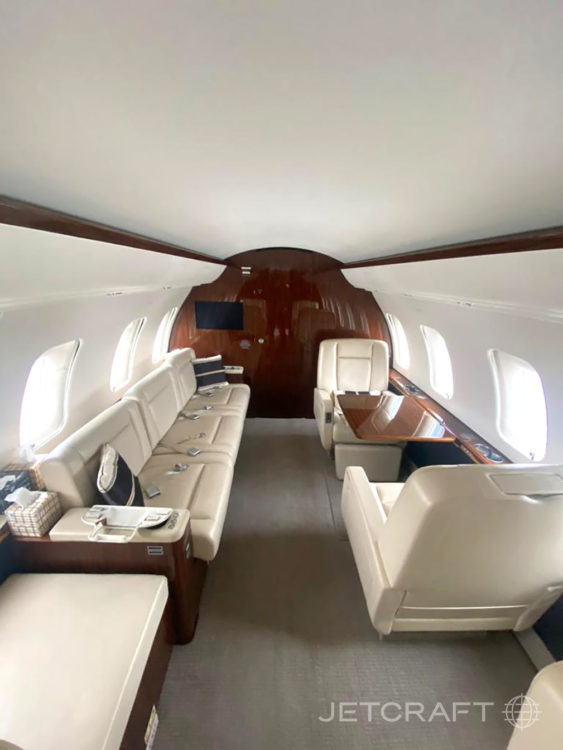

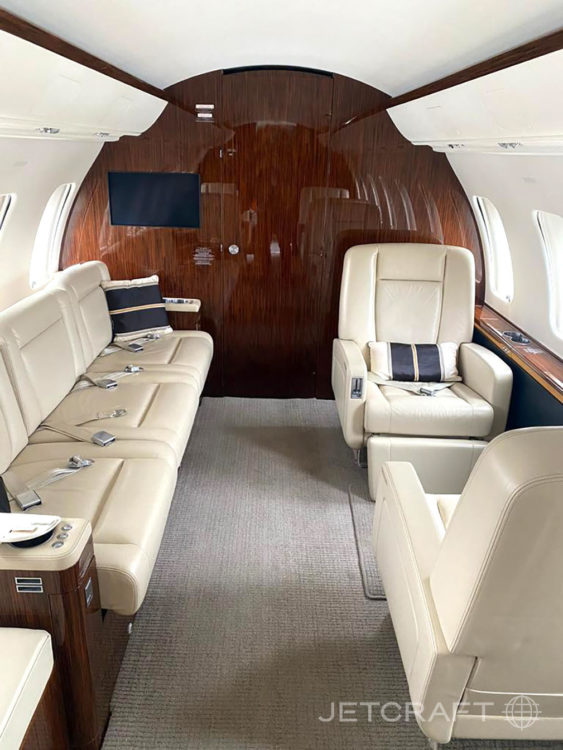

Aft Cabin Configuration | Two (2) Place Club opposite Four (4) Place Divan |
Lavatory Location(s) | Aft Executive |
Jumpseat | Yes |
Galley Equipment | Coffee Maker, Microwave, Oven |
Last Refurbished Date | Original Completion |

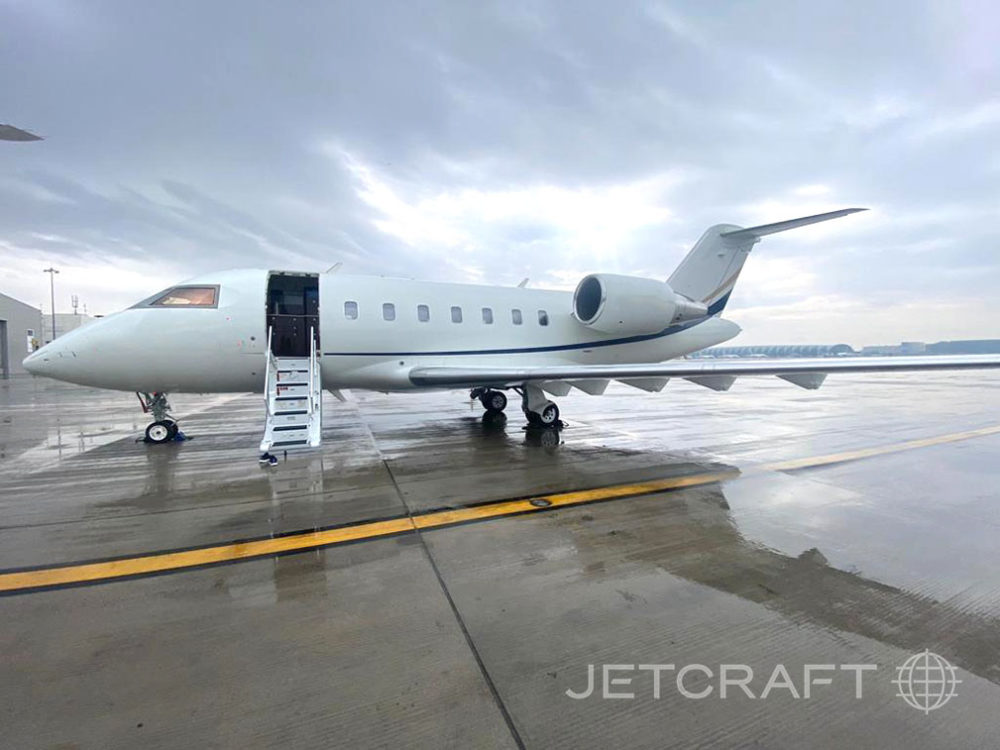

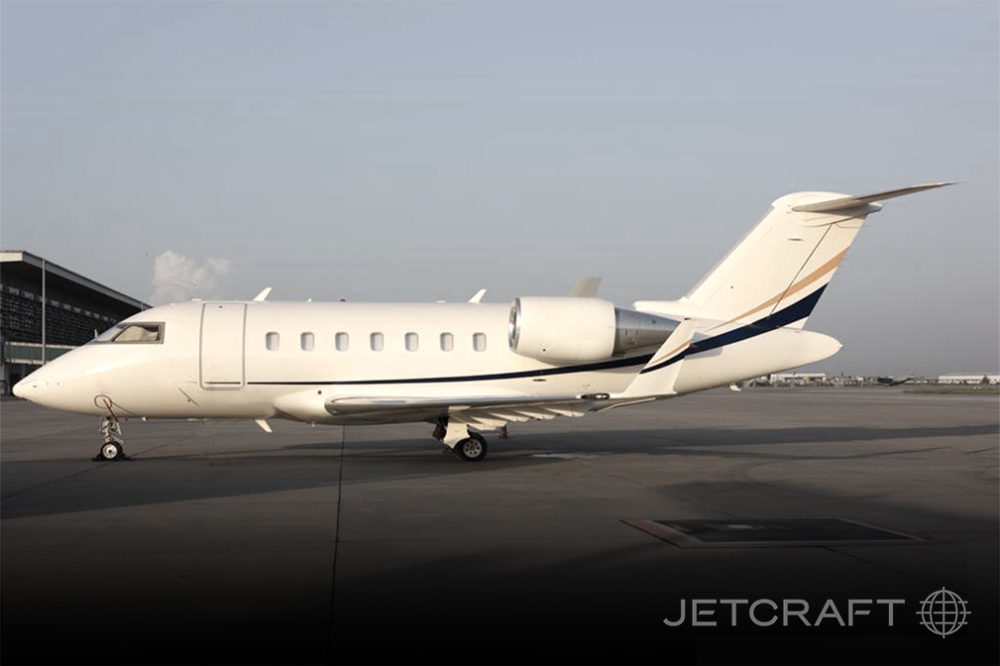

Base Paint Color(s) | White |
Stripe Color(s) | Blue and Gold |
Last Painted Date | Original Completion |
Click here to view the online range map. To receive a more detailed custom range report including detailed aircraft comparisons, contact us at +1 919 941 8400 or [email protected].
Inspection | Last Performed | Next Due |
12 Month Check | January 2023 | January 2024 |
24 Month Check | January 2023 | January 2025 |
36 Month Check | January 2022 | January 2025 |
48 Month Check | April 2021 | January 2025 |
96 Month Check | April 2021 | January 2029 |
192 Month Check | – | January 2029 |
