| Total Time Since New | 962 Hours (as of March 2023) |
| Total Landings Since New | 553 Landings |
| Certification Date | February 8, 2021 |
| Program Coverage | Smartparts Plus |
| Left Engine | Right Engine | ||
| Description | General Electric CF-34-3B | ||
| Serial Numbers | 801627 | 801629 | |
| Total Hours Since New | 885 Hours | 885 Hours | |
| Total Cycles Since New | 515 Cycles | 507 Cycles | |
| Program Coverage | Ge OnPoint | ||
| Description | Honeywell GTCP 36-150 | |
| Serial Number | P-564 | |
| Hours | 973 Hours | |
| Program Coverage | MSP Gold | |

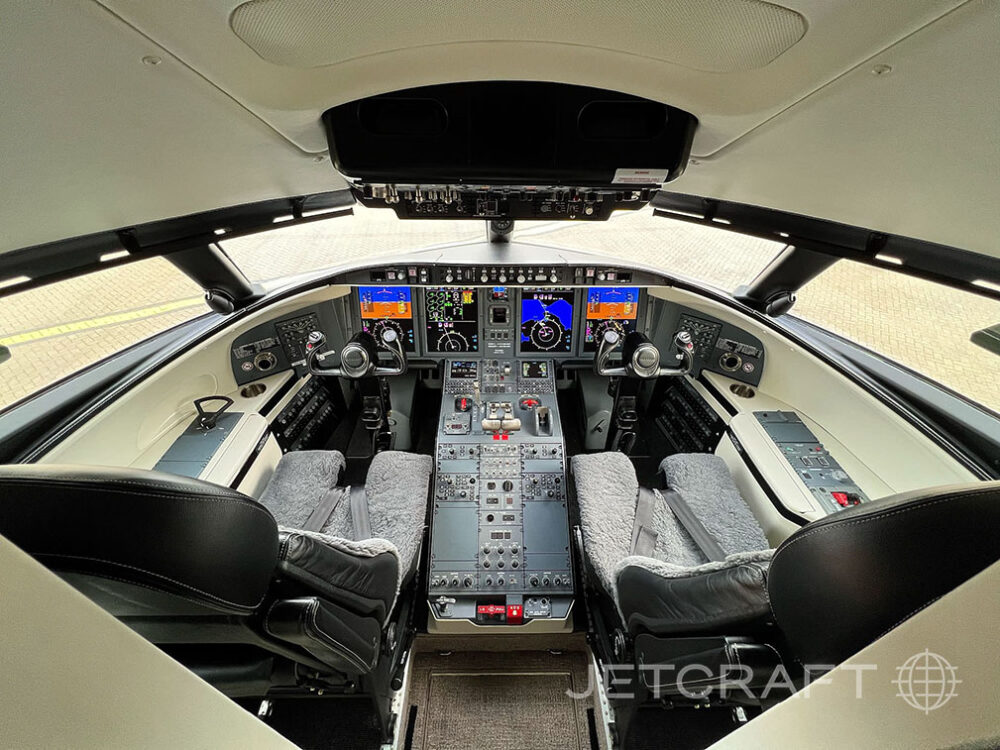

The Bombardier Challenger 650 is equipped with an integrated, Collins Pro Line 21 Advanced avionics suite. A general summary of this aircraft’s avionics suite is as follows:
| Type of Unit | Quantity | Unit Description |
| EFIS (Electronic Flight Instrument System) | Four-Tube | Collins AFD-5220E |
| FMS (Flight Management System) | Dual | Collins FMC-6200 |
| CDU (Control Display Unit) | Dual | Collins CDU-6200 |
| IRS (Inertial Reference System) | Dual | Honeywell LASEREF |
| GPS (Global Positioning System) | Dual | Collins GPS-4000S |
| ADC (Air Data Computer) | Dual | Collins ADC-850E |
| NAV (Navigation Radio) | Dual | Collins NAV-4000 |
| DME (Distance Measuring Equipment) | Dual | Collins DME-4000 |
| SVS (Synthetic Vision System) | Single | Collins SVCM-3000 |
| VHF COM (Very High Freq. Communications) | Triple | Collins VHF-4000 |
| HF COM (High Freq. Communications) | Dual | Collins HF-9031A |
| SATCOM (Satellite Communications) | Single | Satcom Direct SDR |
| SDU (Satellite Data Unit) | Single | Collins SDU-2200-2 |
| SELCAL (Selective Calling System) | Single | Avtech CSD-714 |
| WRADAR (Weather Radar) | Single | Collins RTA-4114 |
| RADIO ALT (Radio Altimeter) | Single | Collins ALT-4000 |
| XPNDR (Transponder) | Dual | Collins TDR-94D Mode S |
| EGPWS (Enhanced Ground Proximity Warning System) | Single | Honeywell MKV-A |
| TCAS (Traffic Collision Avoidance System) | Single | Collins TSS-4100 |
| CVR (Cockpit Voice Recorder) | Single | L3 Harris FA2100 SSCVR |
| FDR (Flight Data Recorder) | Single | L3 Harris FA2100 SSFDR |
| ELT (Emergency Locator Transmitter) | Single | Artex C406-N |
| Number of Passengers | Twelve (12) |

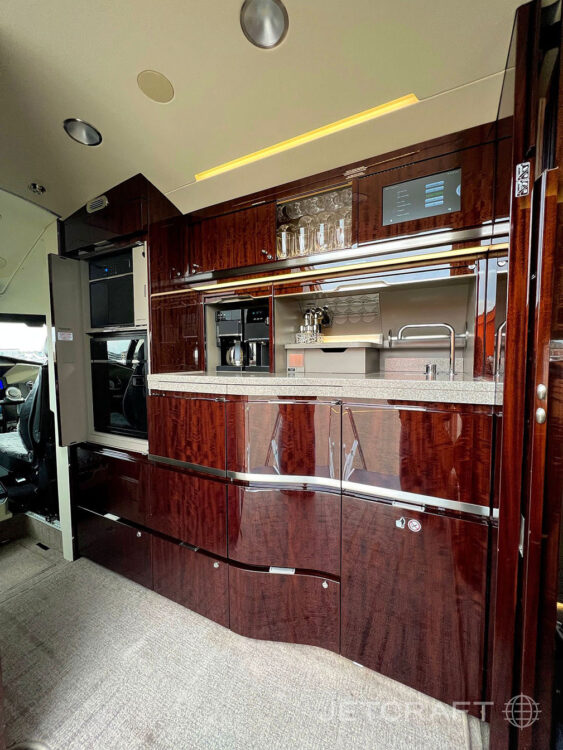

| Galley Location | Forward |

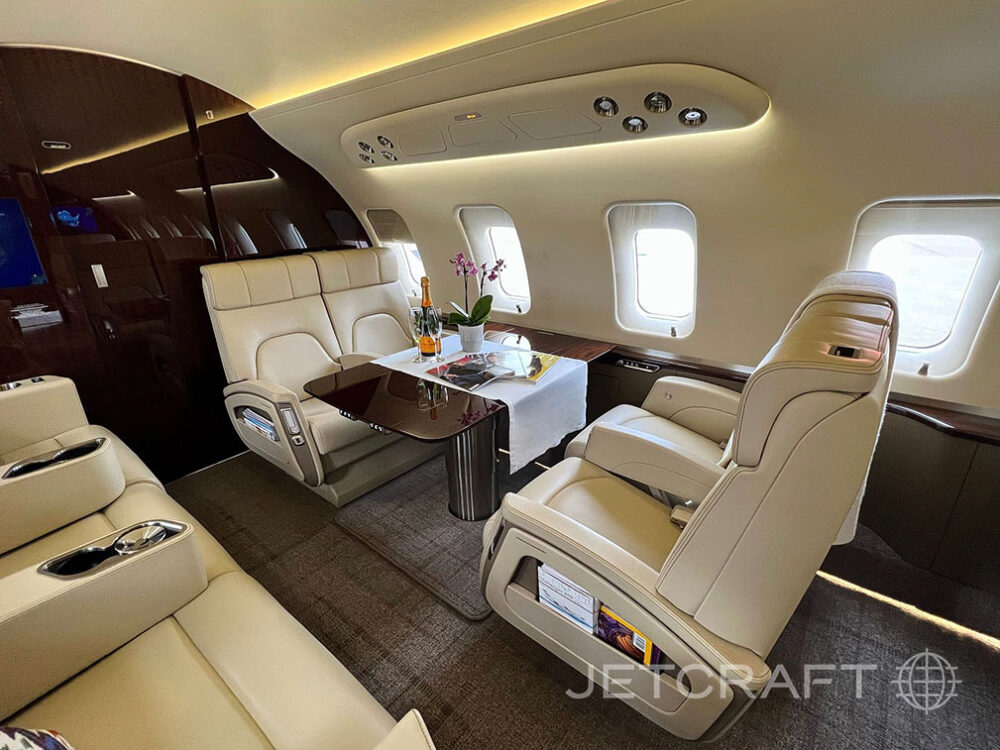

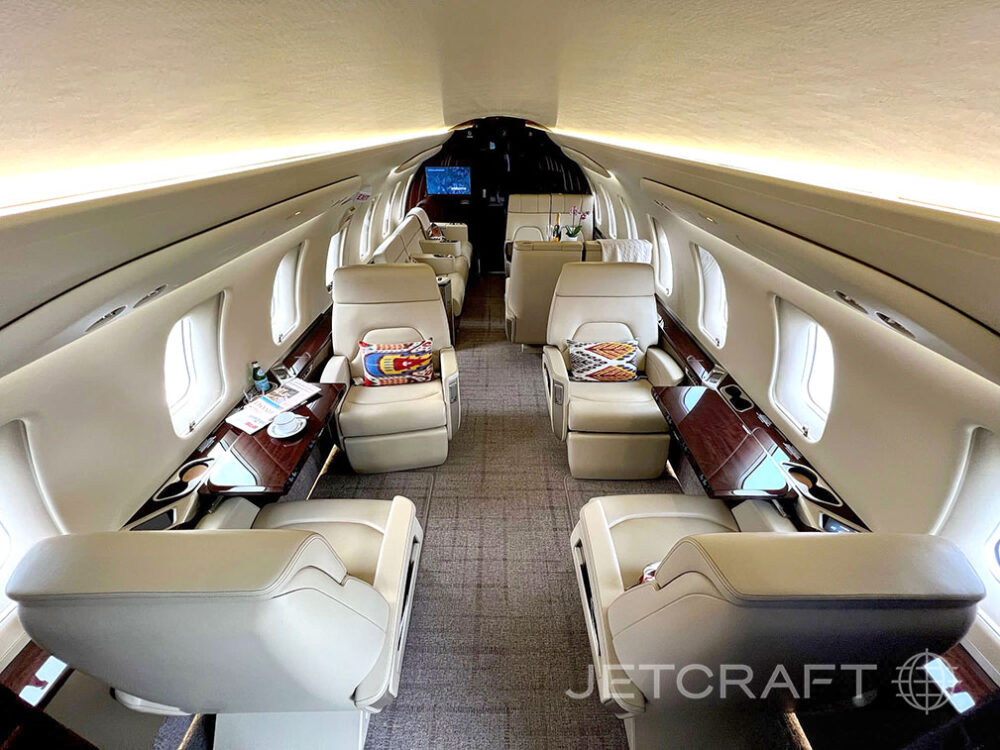

| Forward Cabin Configuration | Four (4) Place Double Club |

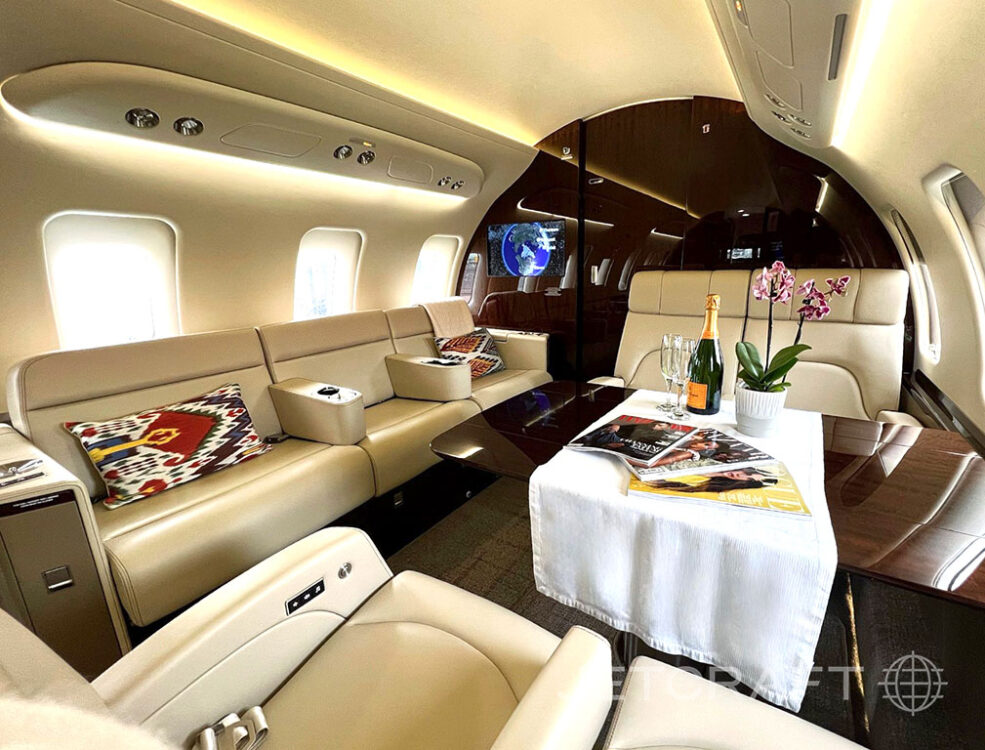

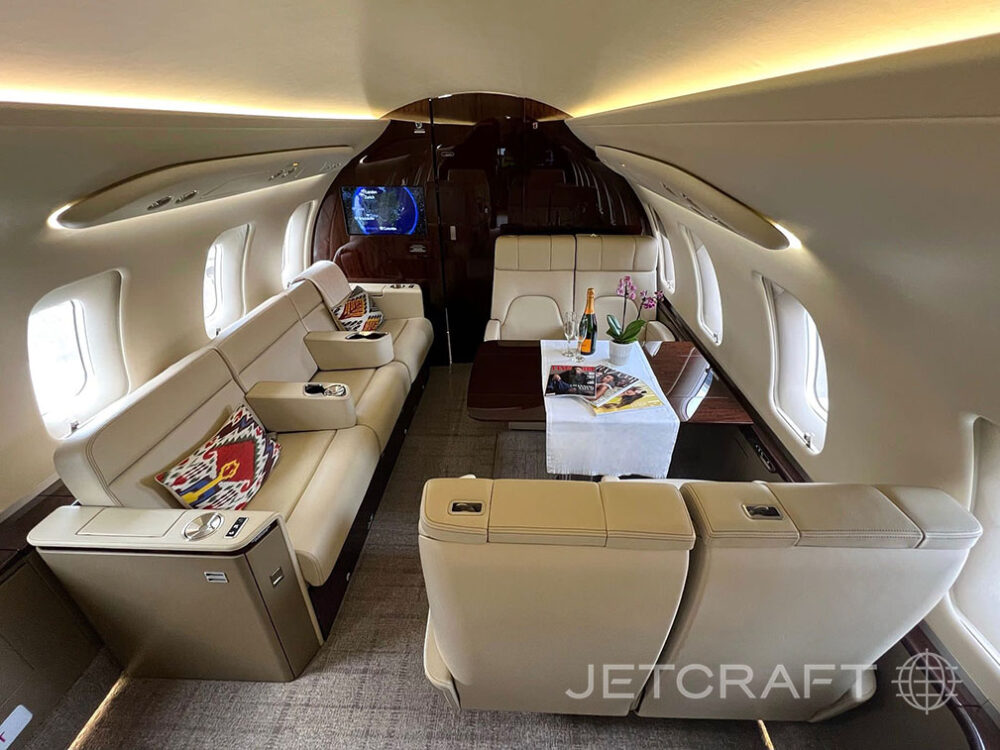

| Aft Cabin Configuration | Four (4) Place Conference Group Opposite a Four (4) Place Divan |

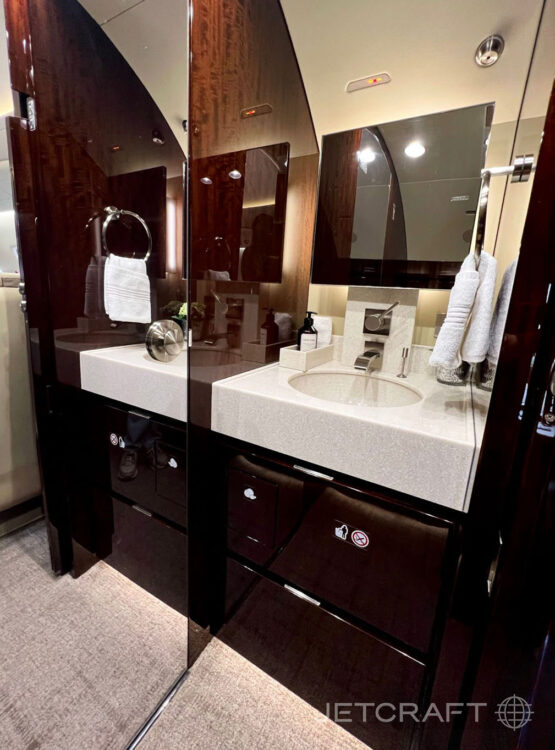

| Lavatory Location | Aft |
| Last Refurbishment | Original |
| Display Monitors | Forward and Aft Bulkhead 24” Monitors |

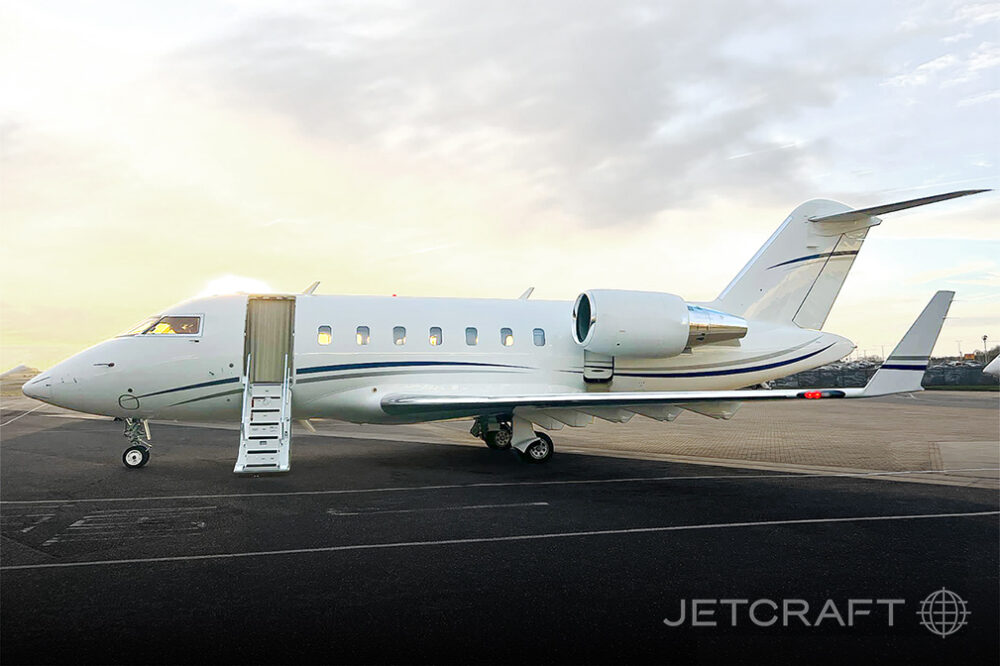

| Base Paint Color | White |
| Stripe Colors | Blue & Silver |
| Last Refurbishment | Original |
Contact Us at +1 919 941 8400 or [email protected] to request a custom range report including detailed aircraft comparisons.
| Inspection | Last Performed | Next Due |
| 12 Month Check | January 2023 | January 2024 |
| 24 Month Check | January 2023 | January 2025 |
| 36 Month Check | – | February 2024 |
| 48 Month Check | – | February 2025 |
| 96 Month Check | – | February 2029 |
| Flex Take-Off | FANS 1/A+ |
| Wheel Storage Unit |
| Internet | Inmarsat Satcom SwiftBroadband |
