| Total Time Since New | 4,045 Hours (As of October 28, 2022) |
| Total Landings Since New | 2,637 Landings |
| Airworthiness Date | 05 Feb 2009 |
| Home Base | Dubai, UAE |
| Maintenance Tracking | CMP |
| Left Engine | Right Engine | |
| Description | Pratt and Whitney PW306A | |
| Serial Numbers | PCE-CC-0464 | PCE-CC-0465 |
| Total Hours Since New | 3,831 Hours | 4,045 Hours |
| Total Cycles Since New | 2,471 Cycles | 2,637 Cycles |
| Program Coverage | JSSI (100%) | |
| Description | Honeywell GTCP36-150 |
| Serial Number | P-330 |
| APU Total Time Since New | 3,604 Hours |
| Program Coverage | Honeywell MSP |
The Gulfstream G200 is equipped with an integrated, Collins Proline IV avionics suite. A general summary of this aircraft’s avionics suite is as follows:
| Type of Unit | Quantity | Unit Description | ||
| EFIS (Electronic Flight Instrument System) | 5-Tube | Collins Proline IV | ||
| FMS (Flight Management System) | Dual | Collins FMC-6100 | ||
| AHC (Attitude Heading Computer) | Dual | Collins AHS-3000 | ||
| GPS (Global Positioning System) | Dual | Collins GPS-4000S | ||
| ADC (Air Data Computer) | Dual | Collins ADC-850C | ||
| NAV (Navigation Radio) | Dual | Collins NAV-4000 (VOR/ADF) | ||
| RTU (Radio Tuning Unit) | Dual | Collins RTU-4220 | ||
| DME (Distance Measuring Equipment) | Dual | Collins DME-4000 | ||
| ADF (Automatic Direction Finder) | Dual | Collins ADF | ||
| A/P (Autopilot) | Dual | Collins FCC-4005 Autopilot (CAT II) | ||
| VHF COM (Very High Freq. Communication) | Dual | Collins VHF-4000E w/ 8.33 KHz Spacing | ||
| HF COM (High Freq. Communications) | Dual | Collins KHF-1050 Comm w/ SELCAL | ||
| SATCOM (Satellite Communications) | Single | ICG ICS-200 | ||
| RADAR | Single | Collins TWR-850 | ||
| RADIO ALT (Radio Altimeter) | Single | Collins ALT-4000 | ||
| XPNDR (Transponder) | Dual | Collins TDR-94D w/ Mode S | ||
| EGPWS (Enhanced Ground Proximity Warning System) | Single | Honeywell Mark V | ||
| ELT (Emergency Locator Transmitter) | Single | Artex C406-2 | ||
| TCAS (Traffic Collision Avoidance System) | Single | Collins TCAS-4000 w/change 7.1 | ||
| CVR (Cockpit Voice Recorder) | Single | Universal CVR-120 | ||
| DFDR (Digital Flight Data Recorder) | Single | Honeywell AR-256 | ||

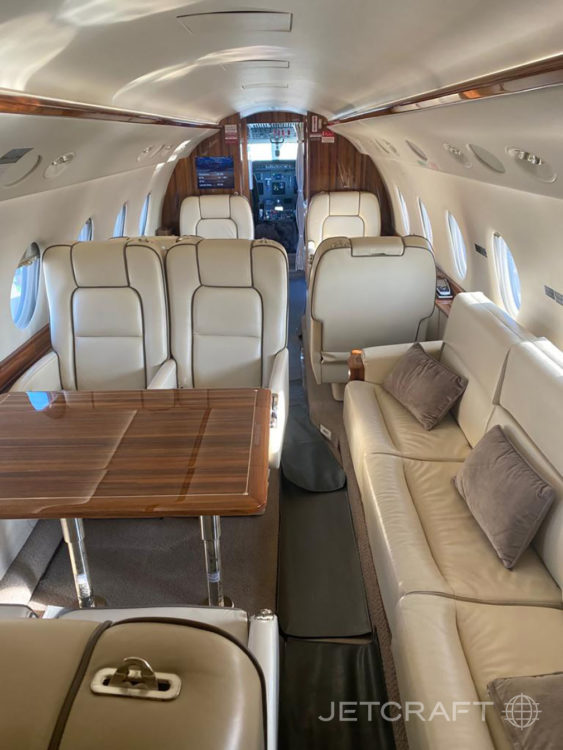

| Description | |
| Number of Passengers | Ten (10) Passengers |

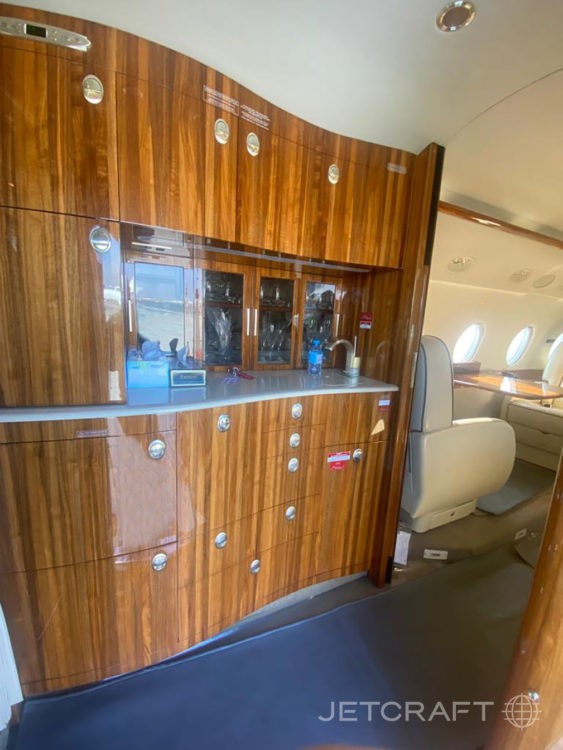

| Galley Location | Forward Cabin |

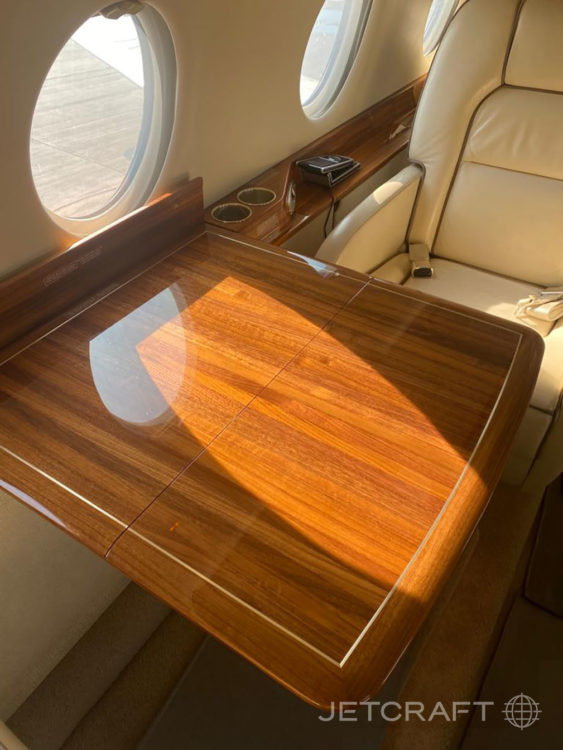

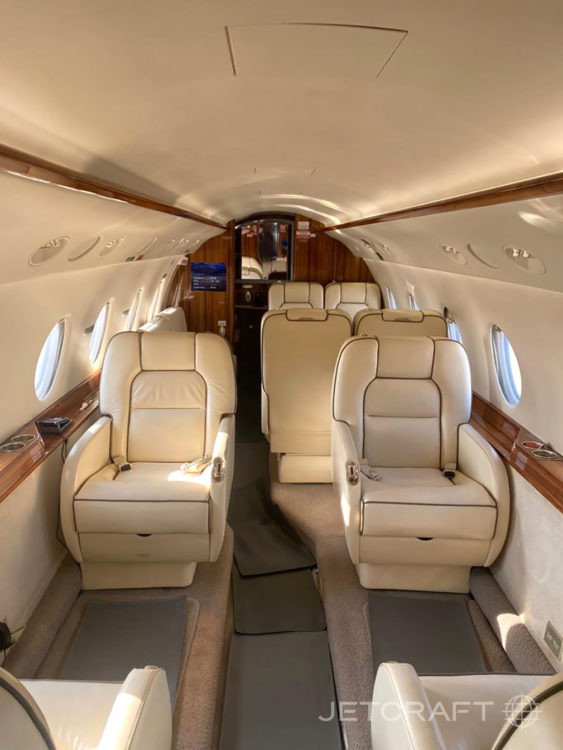

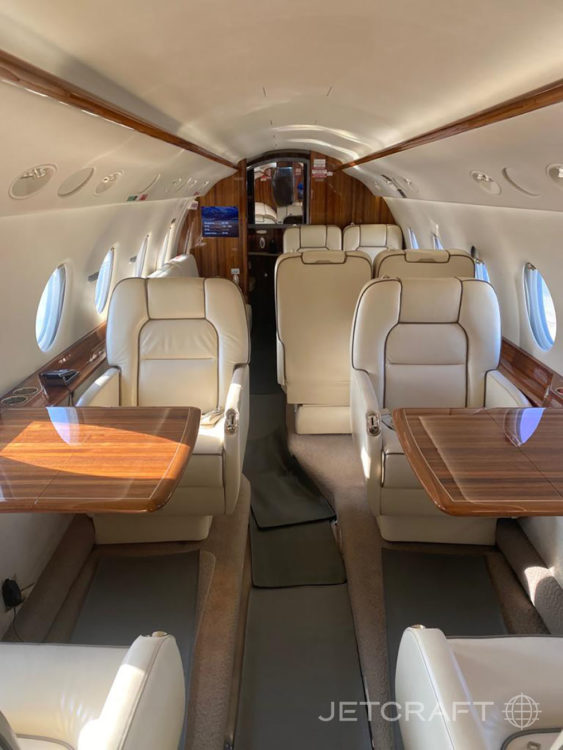

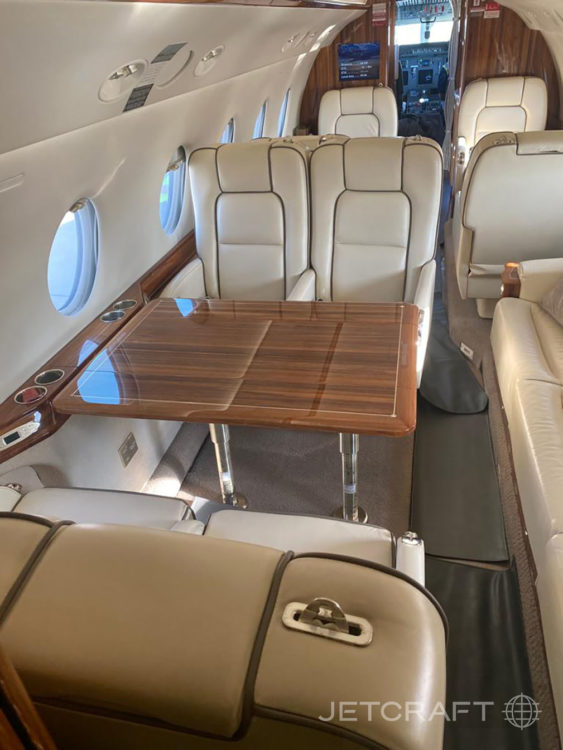

| Forward Cabin Configuration | Four (4) place executive club w/forward pocket door |

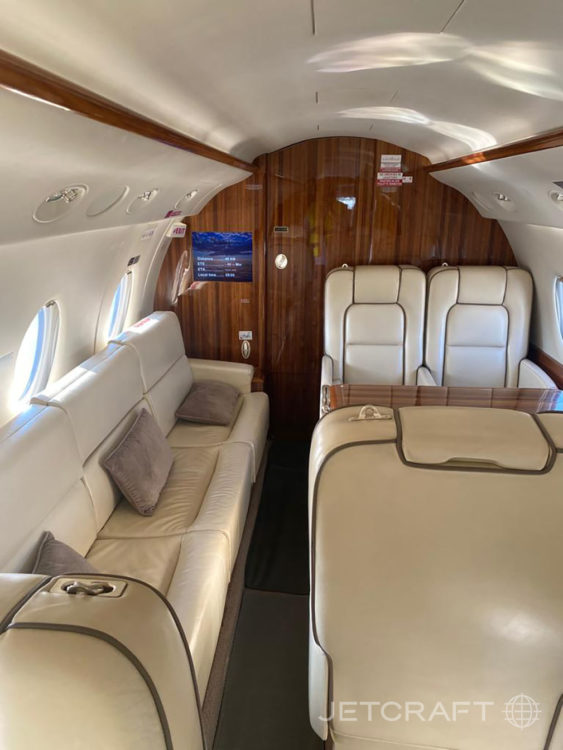

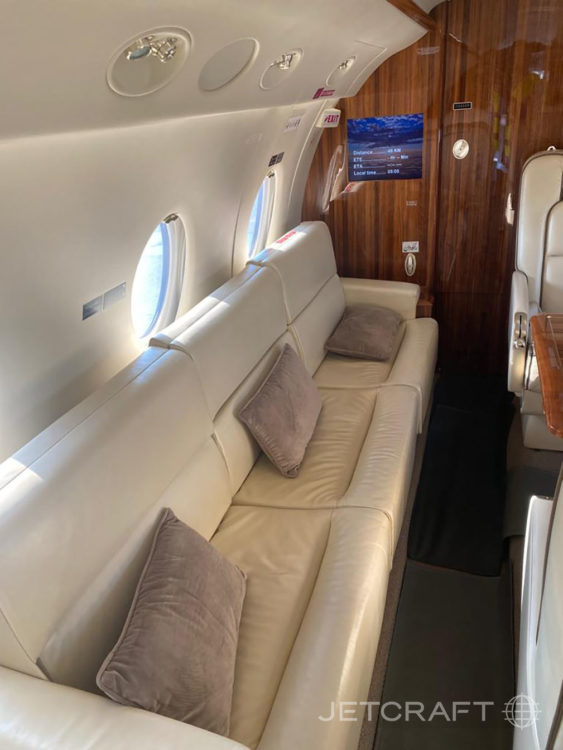

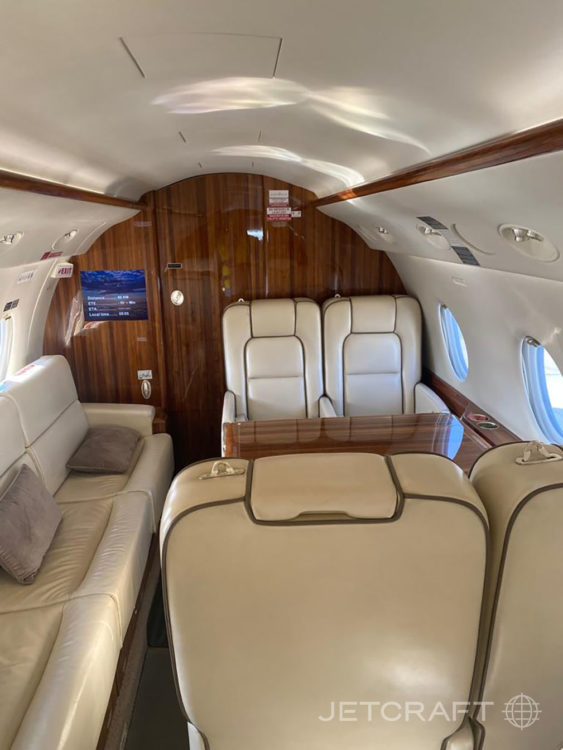

| Aft Cabin Configuration | Four (4) place conference group seating opposite two (2) place divan |

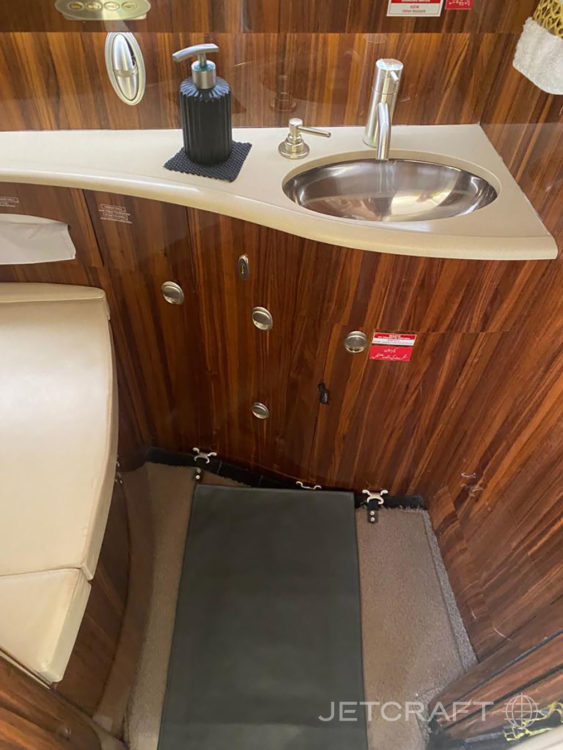

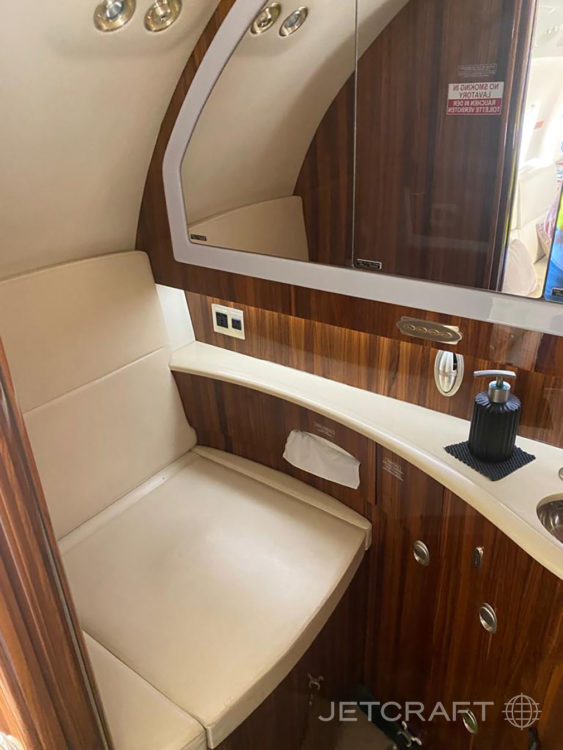

| Lavatory Location(s) | Aft Cabin – fully enclosed |
| Jumpseat | Cockpit Jumpseat |
| Galley Equipment: | |
| Microwave | Wavejet Microwave |
| Refurbished in 2013 |

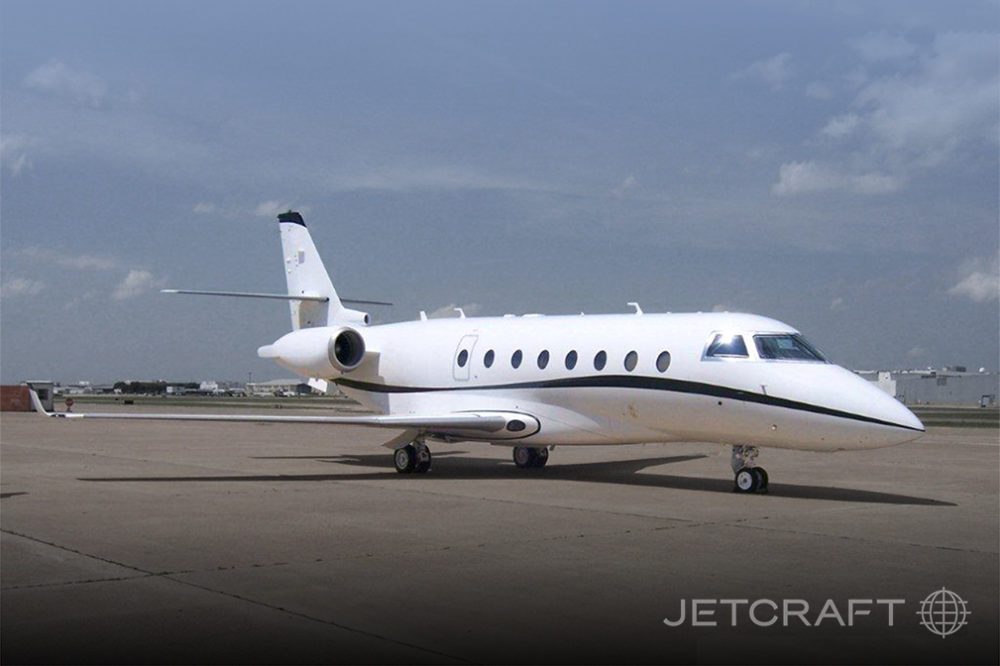

| Base Paint Color(s) | Overall Matterhorn White |
| Stripe Color(s) | Black Velvet Stripe |
| Last Painted Date | 2017 |
| Type of Unit | Quantity | Description |
| Display/TV Monitor(s) | Dual | Forward and Aft 17” Bulkhead Monitors |
| Airshow System | Single | RosenView |
| CD/DVD Player(s) | Dual |
Contact Us at +1 919 941 8400 or [email protected] to request a custom range report including detailed aircraft comparisons.
| Inspection | Last Performed | Next Due |
| 1C Inspection (12 MOS) | August 2022 | August 2023 |
| 2C Inspection (24 MOS) | October 2021 | August 2023 |
| 3C Inspection (36 MOS) | May 2021 | May 2024 |
| 4C Inspection (48 MOS) | April 2021 | April 2025 |
| 6C Inspection (72 MOS) | April 2021 | April 2027 |
| 8C Inspection (96 MOS) | August 2017 | August 2025 |
| 12C Inspection (144 MOS) | April 2021 | February 2033 |
| Type of Unit | Description |
| In Flight Phone | Aircell Iridium Phone w/ 3 handsets |
| Type of Unit | |
| Tow Bar | 115V/60hz and 230V/50hz Outlets |
| Three (3) Winslow life rafts | Dual Digital Clocks |
| Baggage Compartment Heating | Pulse Lights |
| NAT/MNPS | P-RNAV |
| B-RNAV | RVSM |
| RNP 1 | RNP 5 |
| RNP 10 |
