| Total Time Since New | 3,182 Hours (as of January 3, 2022) |
| Total Landings Since New | 954 Landings |
| Entry into Service Date | September 2015 |
| Maintenance Tracking | CAMP |
| Certification | FAR Part 135 / EU OPS 1 |
| Left Engine | Right Engine | |
| Description | Rolls Royce BR700-710A2-20 | |
| Serial Number(s) | 22487 | 22486 |
| Total Hours Since New | 3,182 Hours | 3,182 Hours |
| Total Cycles Since New | 958 Cycles | 958 Cycles |
| Description | Honeywell RE-220 |
| APU Serial Number | P-804 |
| APU Total Time Since New | 2,555 Hours |

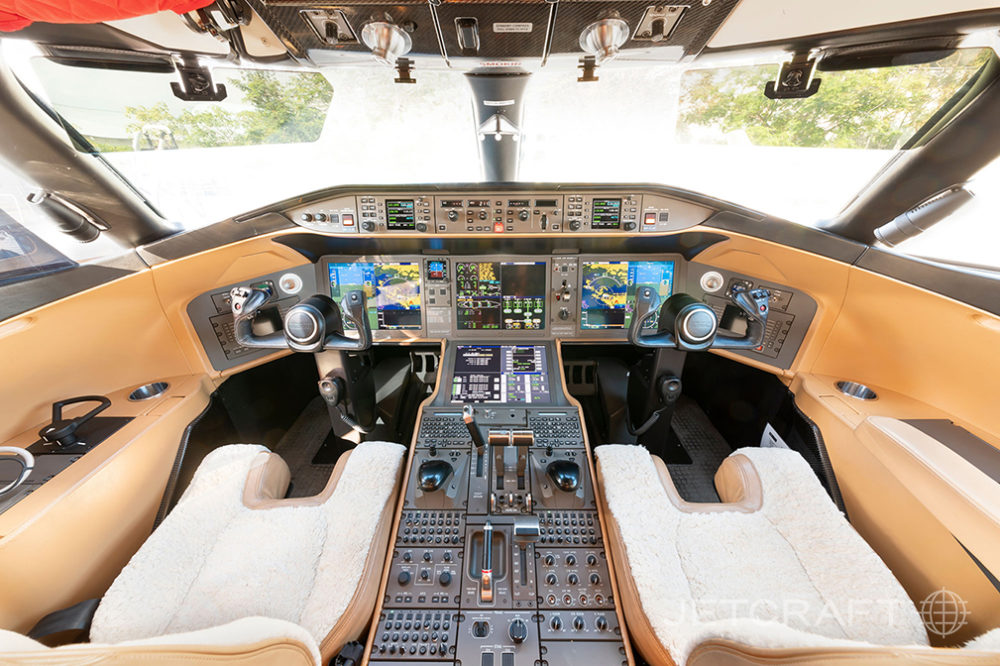

The Bombardier Global 5000 is equipped with an integrated, Rockwell Collins Pro Line Fusion avionics suite. A general summary of this aircraft’s avionics suite is as follows:
| Type of Unit | Quantity | Description | ||
| EFIS (Electronic Flight Instrument System) | 4-Tubes | 14 x 11” Pro Line Fusion Flight Display | ||
| FMS (Flight Management System | Triple | Integrated Flight Management System | ||
| GPS (Global Positioning System) | Dual | Collins GPS-4000S w/ WAAS | ||
| IRS (Inertial reference systems) | Triple | Honeywell LASEREF VI | ||
| ADC (Air Data Computer) | Triple | Collins ADC-3020 | ||
| NAV (Navigation Radio) | Dual | Collins NAV-4000 | ||
| DME (Distance Measuring Equipment) | Dual | Collins DME-4000 | ||
| ADF (Automatic Direction Finding) | Dual | Collins ADF | ||
| IMS (Information Management System) | Single | Collins IMS-6000 | ||
| EVS (Enhanced Vision System) | Single | Bombardier EVS System | ||
| HUD (Head Up Display) | Single | Bombardier HUD System | ||
| SVS (Synthetic Vision System) | Single | Collins SVM-6110H | ||
| A/P (Autopilot) | Single | Integrated Auto Flight Control System | ||
| VHF COM (Very High Freq. Communication) | Triple | Collins VHF-4000 | ||
| HF COM (High Freq. Communications) | Dual | Collins HF-9031A w/ SELCAL | ||
| SATCOM (Satellite Communications) | Single | Collins SAT-2200 | ||
| RADAR | Single | Collins RTA-4118 | ||
| STORMSCOPE | Single | L-3 WX-1000E | ||
| RADAR ALT (Radar Altimeter) | Dual | Collins ALT-4000 | ||
| XPNDR (Transponder) | Single | Collins TDR-94 Mode S | ||
| EGPWS (Enhanced Ground Proximity Warning System) | Single | Honeywell | ||
| TCAS (Traffic Collision Avoidance System) | Single | Collins TSS-4100 TCAS II w/ ADS-B Out (DO-260B) | ||
| ELT (Emergency Locator Transmitter) | Single | Artex 406 ELT | ||
| CVR (Cockpit Voice Recorder) | Single | L-3 FA2100 SSCVR | ||
| FDR (Flight Data Recorder) | Single | L-3 FA2100 | ||
| QAR (Quick Access Recorder) | Single | QAR | ||
| Description | |
| Number of Passengers | Thirteen (13) |

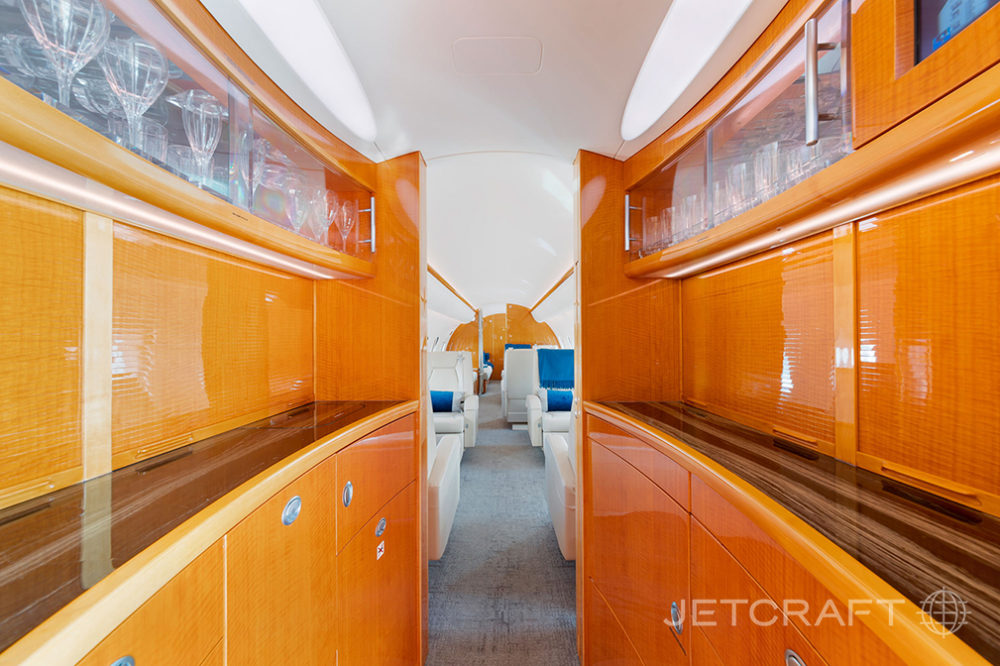

| Galley Location | Forward |

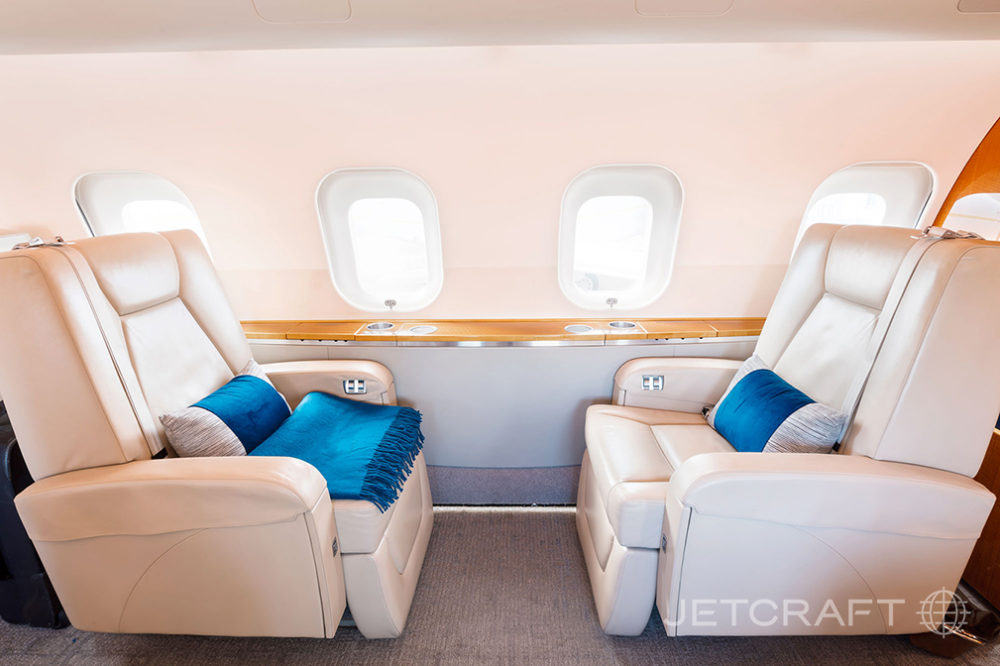

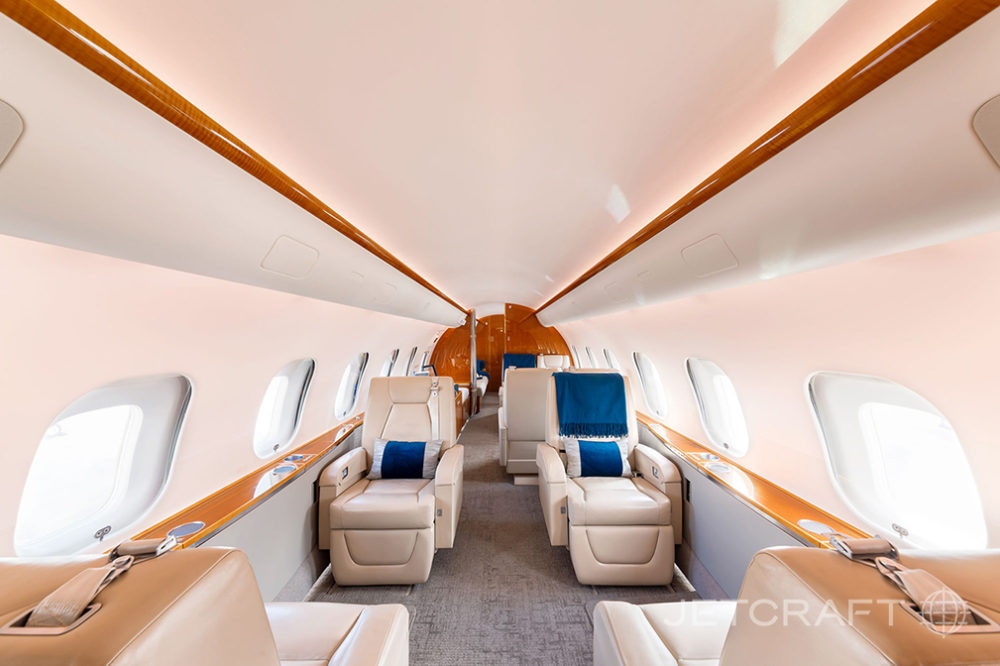

| Forward Cabin Configuration | Four (4) place club with wide seats and pull-out tables |

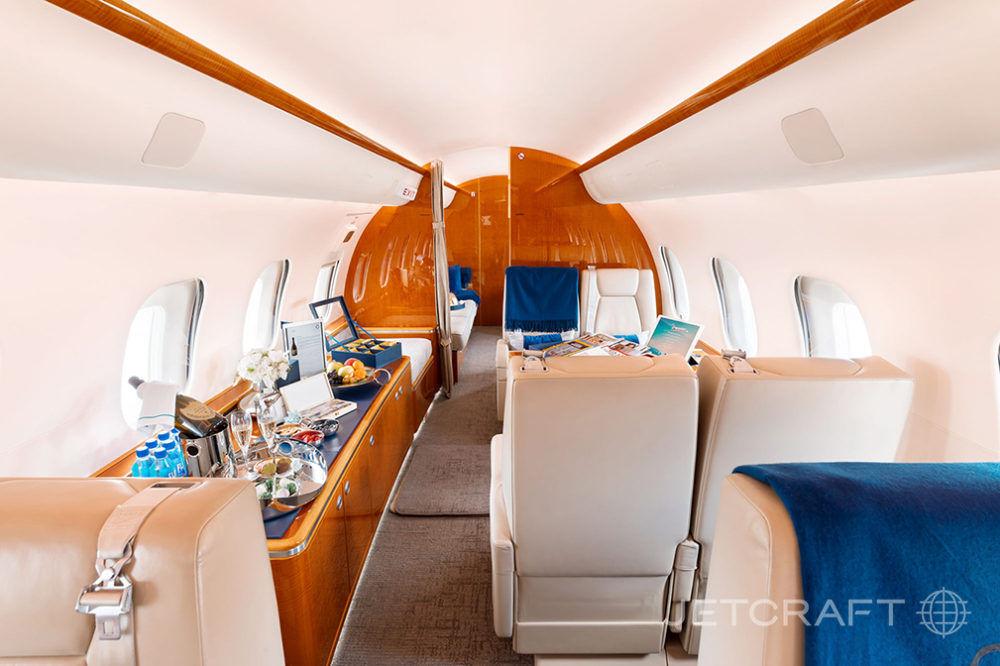

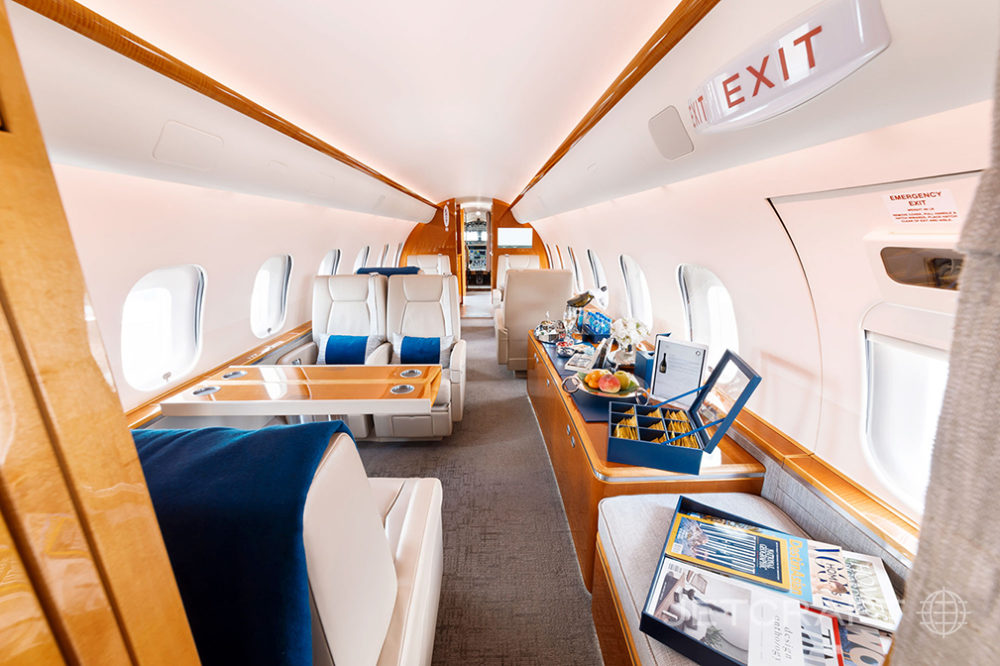

| Mid Cabin Configuration | Four (4) place conference grouping with hi-lo table opposite a credenza |

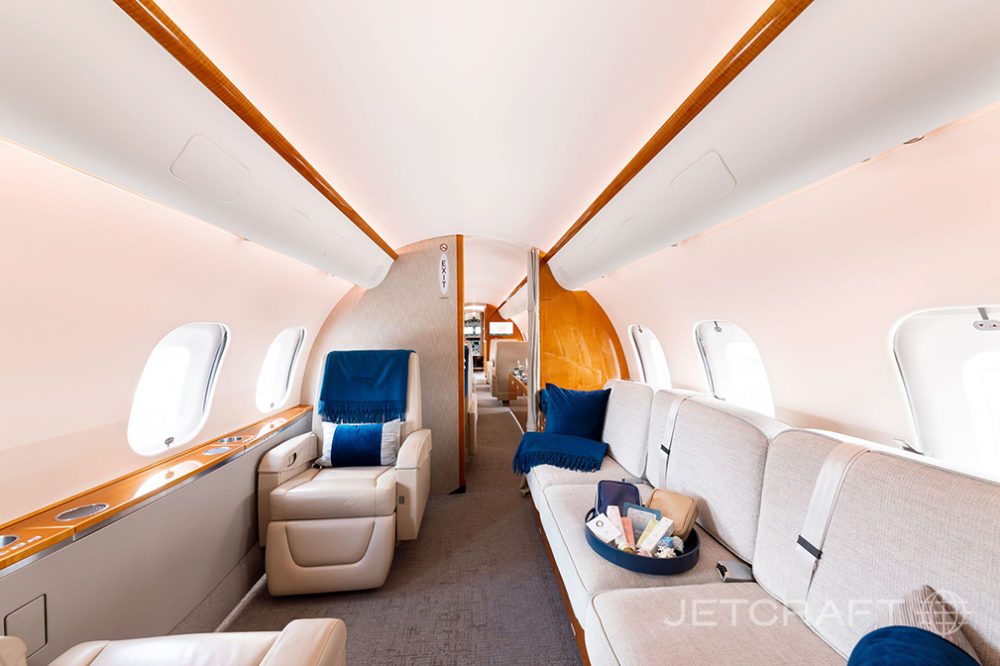

| Aft Cabin Configuration | Two (2) place club with wide seats and pull-out table opposite a Three (3) place Divan |

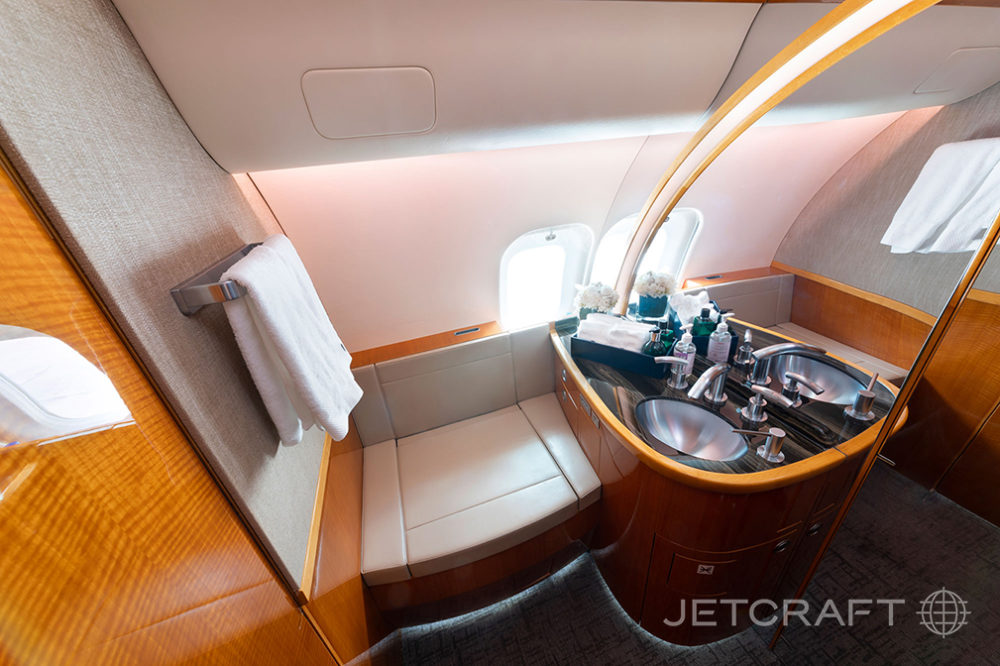

| Lavatory Location(s) | Forward crew lavatory and aft fully enclosed lavatory |
| Other Notable Features | Universal outlets, Walnut Figured Veneer throughout cabin, floor mat heaters, |
| Galley Equipment: | |

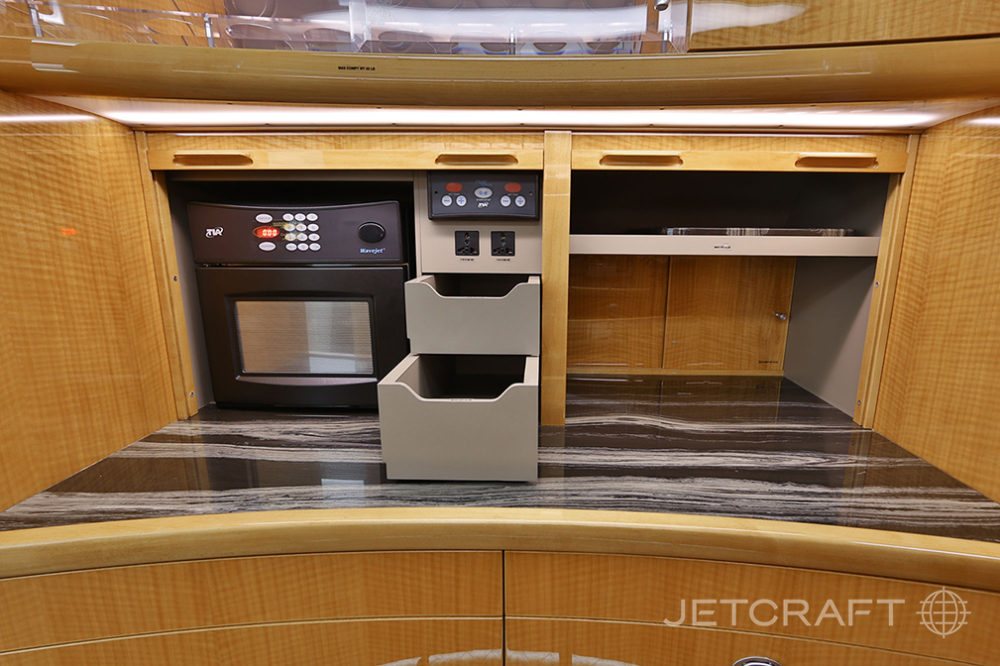

| Microwave | TIA Microwave Oven |
| High Temp Oven | TIA High Temp Oven |

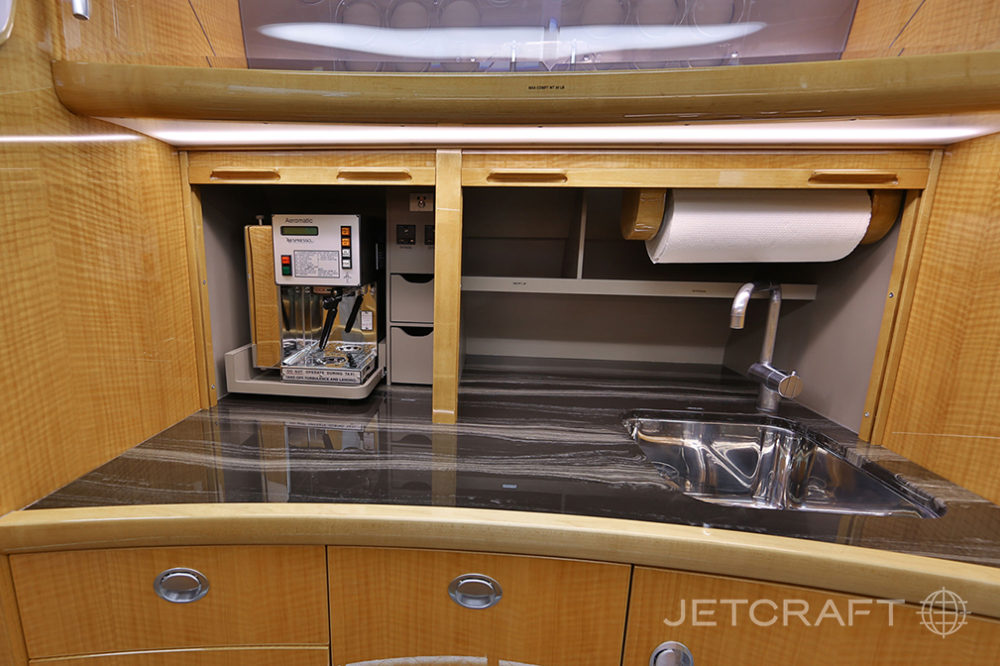

| Coffee/Espresso Maker | Manual Fill Coffee Maker |
| Other Notable Features | Chiller-cooled food storage, divided ice drawer with overboard drain, 10.6” Touch screen LCD galley monitor |
| Type of Unit | Quantity | Description |
| Display/TV Monitor(s) | Two | 2 x 24” Bulkhead HD mounted monitors |
| Two | 2 x 10.6” Touch screen plug-in LCD monitors | |
| Airshow System | Single | Airshow 3.0 Interactive Flight Information System w/Day-Night Map w/Time Zones |
| Audio/Video Player(s) | Two | Dual Disk Blu-ray/DVD/CD players |
| CMS (Cabin Management System) | Rockwell Collins (CES) Cabin Electronic System with Two (2) Wireless Passenger Control Units | |
| Other Notable Features | Ten (10) high quality cabin speakers and four (4) subwoofers with cabin audio amplifier, Wireless LAN, Global Office Cabin Printer/Scanner, Passenger Address system, Eight (8) plug-in receptacles for plug-in monitors, Two (2) iPod Cradle Installations with audio/video capability, High Definition Media Streamer HDD, Storage for customer supplied Media Hard Drive with USB port | |

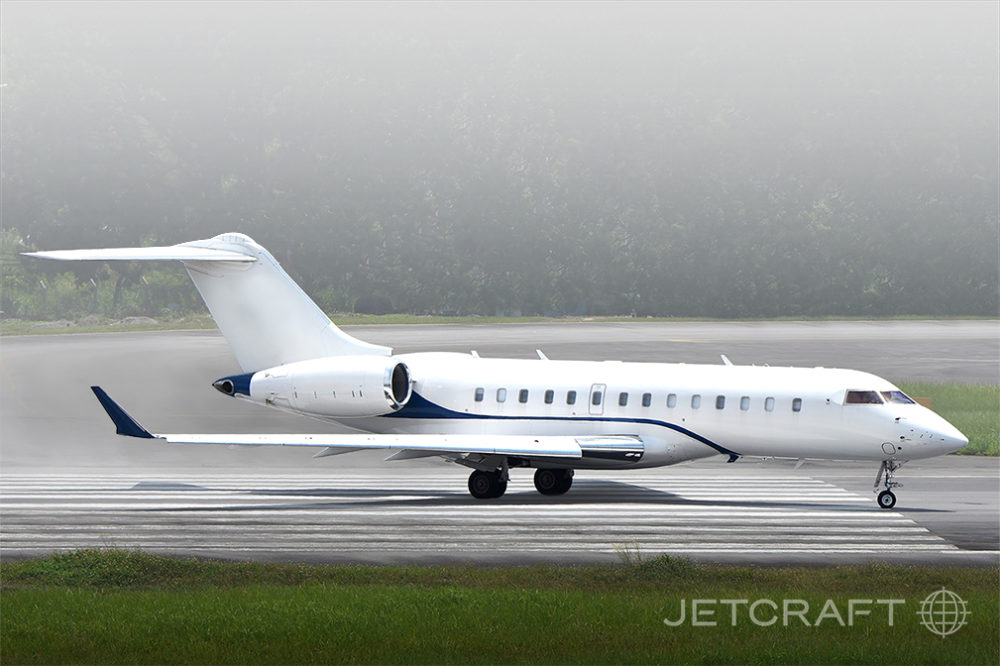

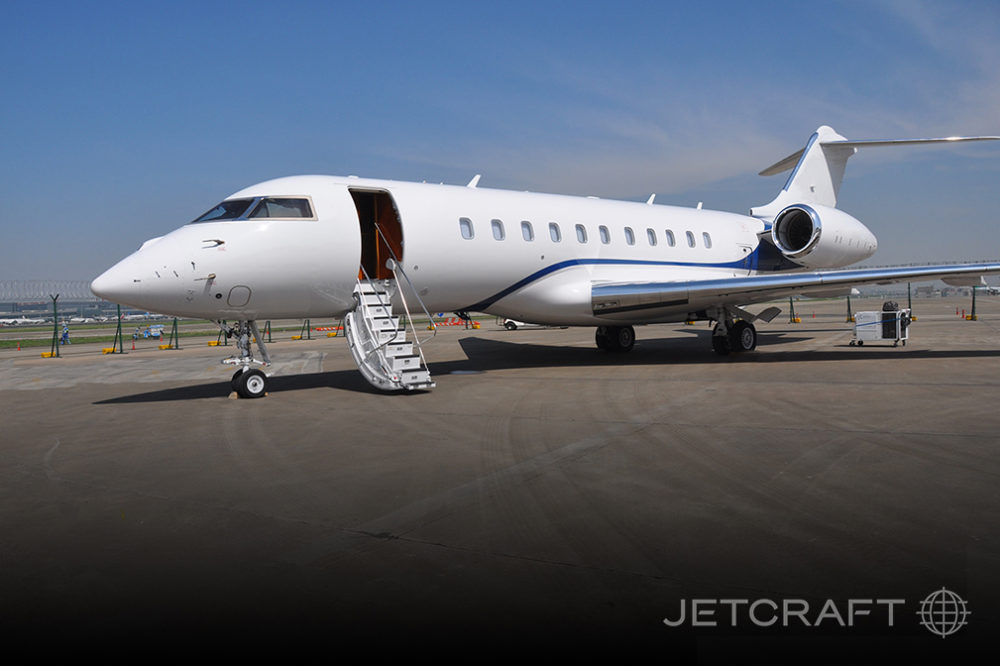

| Base Paint Color(s) | Overall Matterhorn White |
| Stripe Color(s) | Blue & Winglets |
Click here to view the online range map. To receive a more detailed custom range report including detailed aircraft comparisons, contact us at +1 919 941 8400 or [email protected].
| Inspection | Last Performed | Next Due |
| 15 Month Check | December 2021 | March 2023 |
| 30 Month Check | September 2020 | March 2023 |
| 60 Month Check | September 2020 | September 2025 |
| 120 Month Check | – | September 2025 |
| Electronic Charts Capability | ||
| Three (3) Cockpit Audio Control Panels | Integrated Electronic Standby Instruments | |
| Onboard Maintenance System | Entry Door Handrail Extension | |
| Integrated Flight Information System | Sunshield (Cockpit) | |
| Cabin Power Bus Disconnect | Winglet Viewing Mirrors (Cockpit) | |
| Aft Equipment Bay Storage Box | Jeppesen Manual Storage Drawer | |
| Aircraft Identification Plate | EICAS Door Open Annunciation | |
| External Service Door Hold-Open | APU Hour Meter | |
| Catwalk Battery Access | External Baggage Door Lock Override | |
| HSD Internet | ViaSat Ku-Band Internet & Swift Broadband |
| Satellite Communications | SAT-2200 and Iridium based comm channel |
| Other Connectivity Features | Satcom Direct Router WLAN, Off aircraft connectivity, Network security, Portable Multimedia Input Ports |
| FAR 135 Operations Crew Measurement System |
| SB 700-25-6023R1 -Installation of EFB Tablet Holders & Smart Chargers |
| SB 700-34-5018 ADS-B out / CPDLC (Link 2000+) |
| SB 700-25-5017R1 – Installation of EFB Tablet Holders & Smart Chargers |
| SB 700-57-50003 /5005 / 5006 – Complied with Corrosion / Drainage & Chafing |
