Total Time Since New | 2,810 Hours (As of February 24, 2023) |
Total Landings Since New | 1,132 Landings |
Certification Date | July 17, 2007 |
Entry into Service Date | April 29, 2008 |
Current Location | San Luis Obispo, CA U.S.A. |
Program Coverage | Bombardier Smart Parts |
Maintenance Tracking | CAMP |

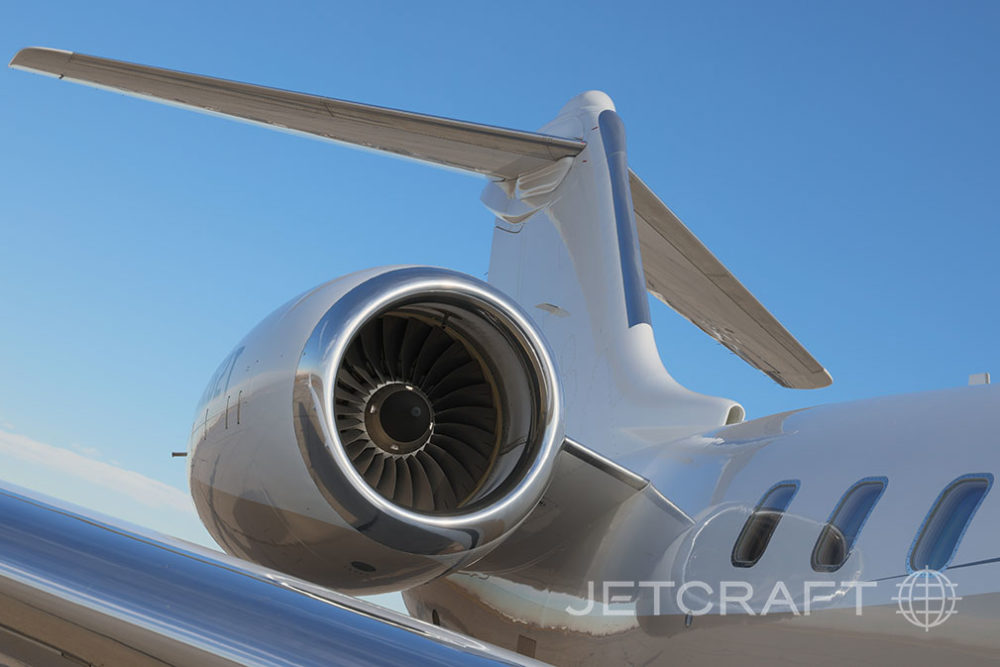

Left Engine | Right Engine | ||
Description | Rolls Royce BR700-710A2-20 | ||
Serial Number(s) | 12617 | 12618 | |
Total Hours Since New | 2,810 Hours | 2,810 Hours | |
Total Cycles Since New | 1,132 Cycles | 1,132 Cycles | |
Program Coverage | Rolls Royce Corporate Care |
Description | Honeywell RE220 |
Serial Number | P-378 |
APU Total Time Since New | 3,082 Hours |
APU Total Cycles Since New | 2,750 Cycles |
Program Coverage | Honeywell MSP |

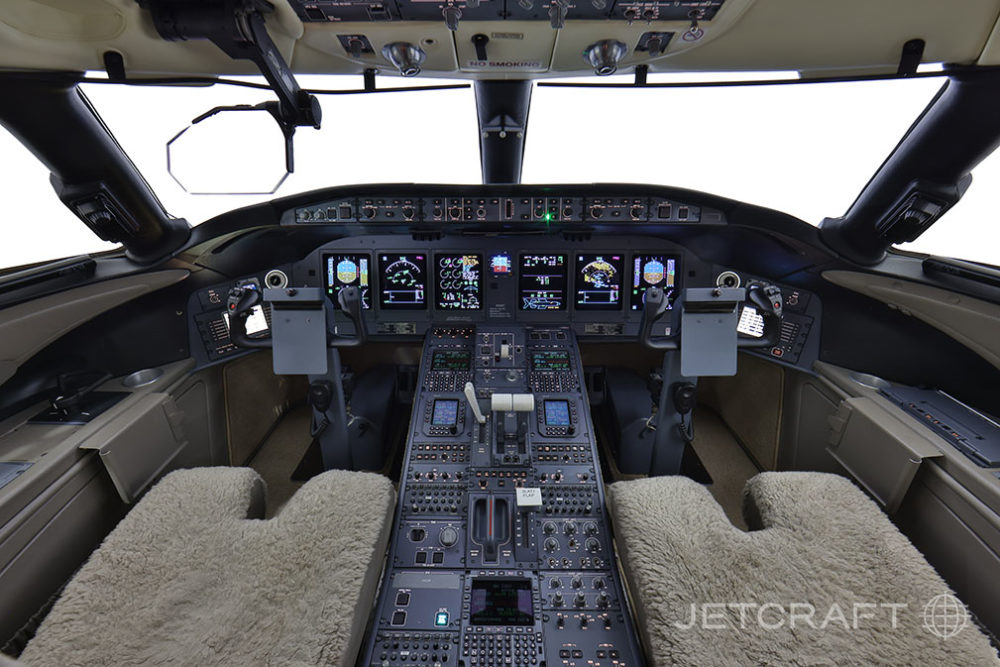

The Bombardier Global XRS is equipped with an integrated, Honeywell Primus 2000XP avionics suite. A general summary of this aircraft’s avionics suite is as follows:
Type of Unit | Quantity | Unit Description |
EFIS (Electronic Flight Instrument System) | Six-Tube | Honeywell DU-870 |
FMS (Flight Management System) | Triple | Honeywell NZ-2000 |
CDU (Central Display Unit) | Triple | Honeywell CD-820 |
IRS (Inertial Reference System) | Triple | Honeywell LASEREF |
GPS (Global Positioning System) | Dual | Honeywell |
MADC (Micro Air Data Computer) | Triple | Honeywell AZ-950 |
NAV (Navigation Radio) | Dual | Honeywell RZ-851 |
IAC (Integrated Avionic Computer) | Triple | Honeywell IC-810 |
HUD (Head Up Display) | Single | Bombardier Head Up Display |
EVS (Enhanced Vision System) | Single | Bombardier Enhanced Vision System |
VHF COM (Very High Freq. Communications) | Triple | Honeywell RCZ-833M (Dual) and RCZ-833 (Single) |
HF COM (High Freq. Communications) | Dual | Collins HF-9031A |
SATCOM (Satellite Communications) | Single | Collins SRT-2100 |
WRADAR (Weather Radar) | Single | Honeywell RDR-7000 |
RADAR ALT (Radar Altimeter) | Dual | Collins ALT-4000 |
XPNDR (Transponder) | Dual | Honeywell RZ-851 |
EGPWS (Enhanced Ground Proximity Warning System) | Single | Honeywell Mark V EGPWS |
TCAS (Traffic Collision Avoidance System) | Single | TCAS 2000 |
CVR (Cockpit Voice Recorder) | Single | Honeywell SSCVR |
FDR (Flight Data Recorder) | Single | Honeywell SSFDR |
ELT (Emergency Locator Transmitter) | Single | Artex |
Number of Passengers | Fourteen (14) |

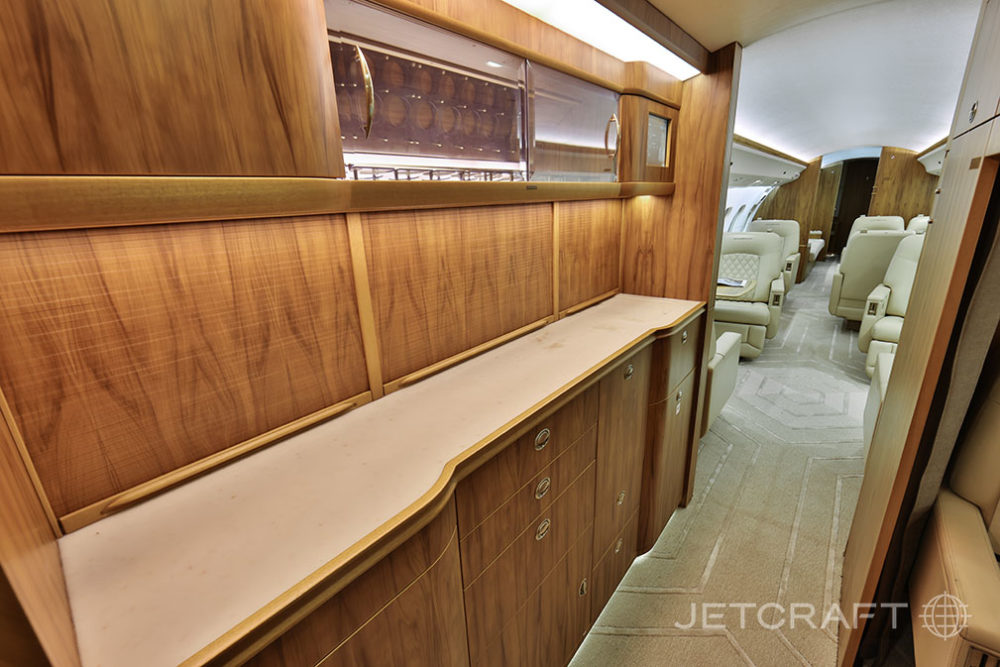

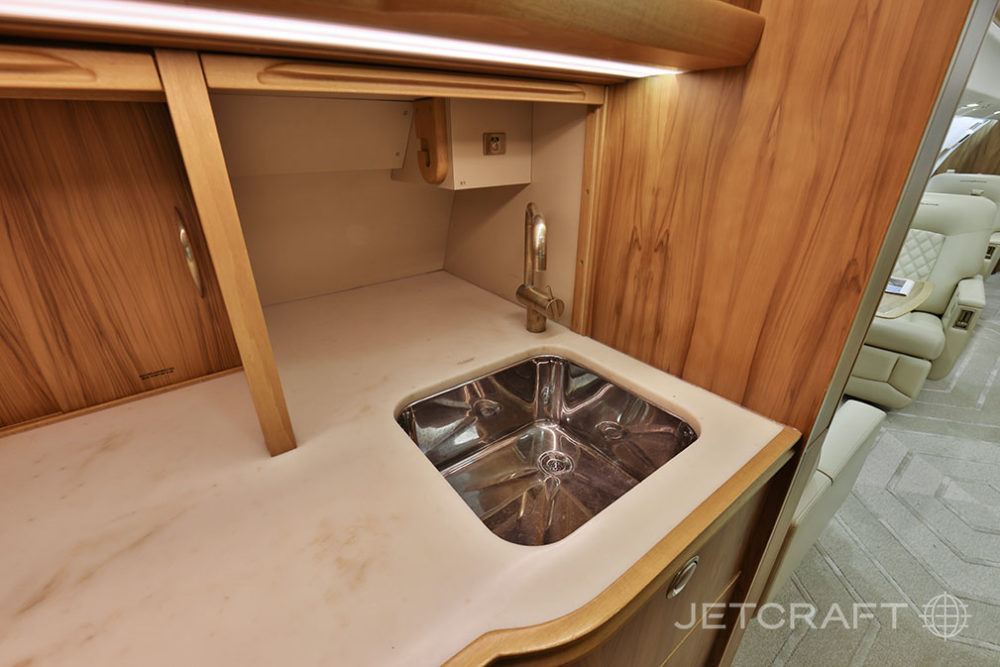

Galley Location | Forward |

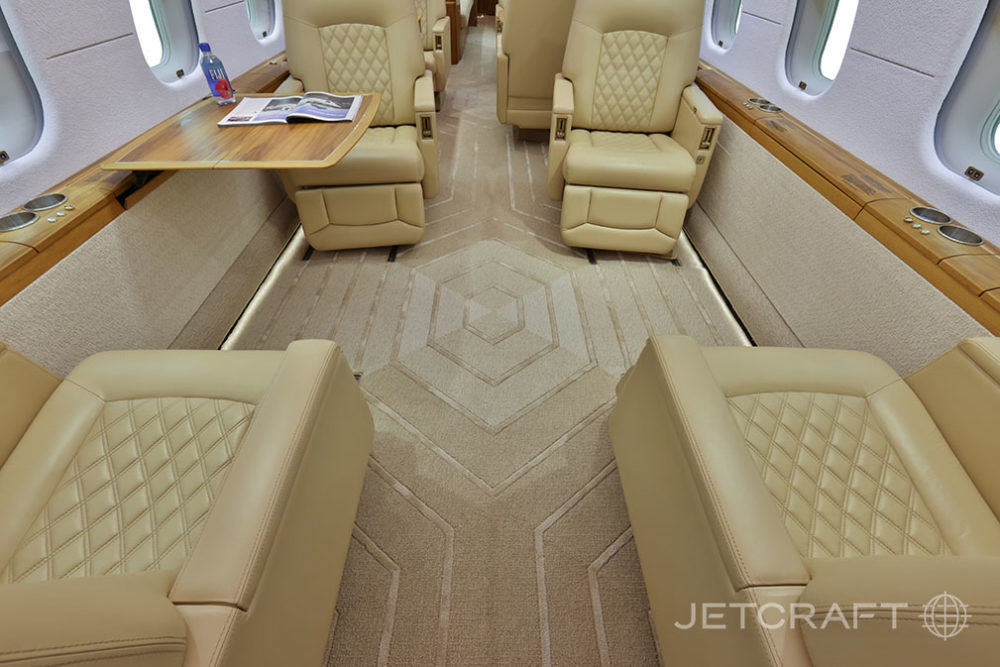

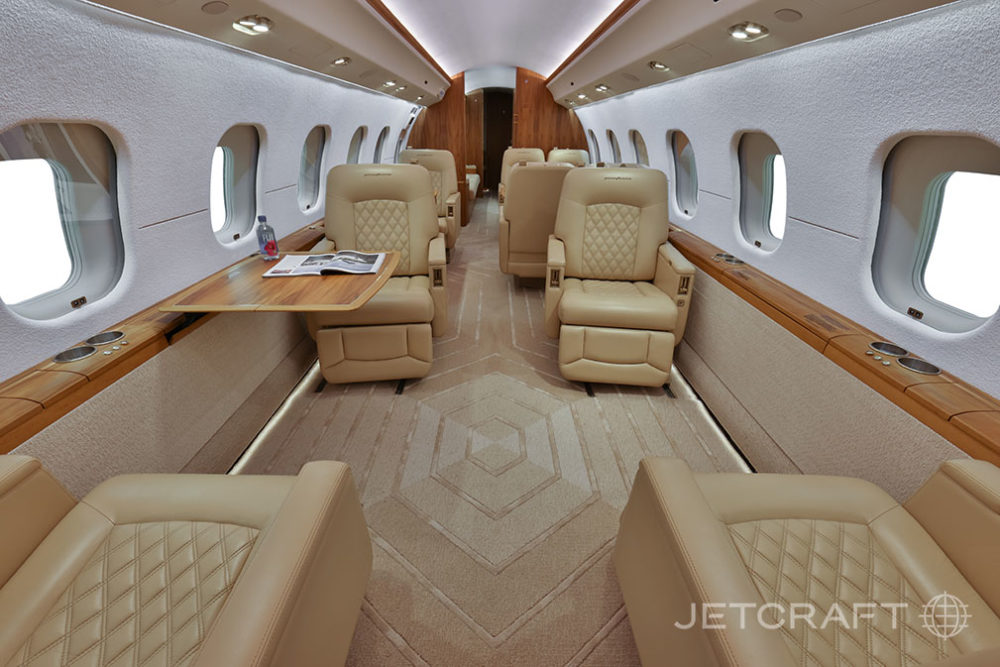

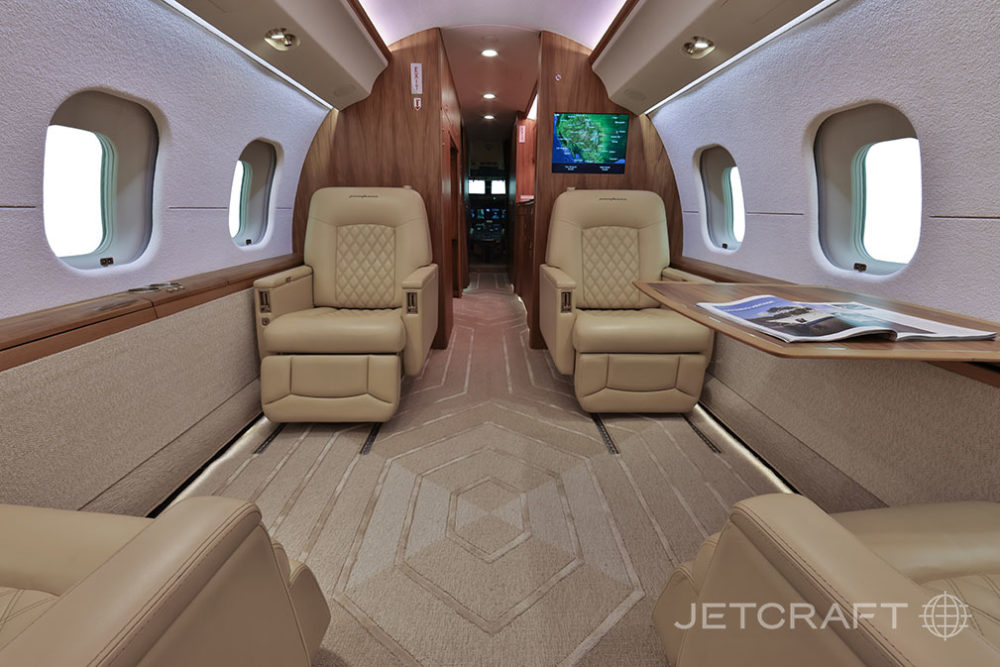

Forward Cabin Configuration | Four (4) Place Double Club |

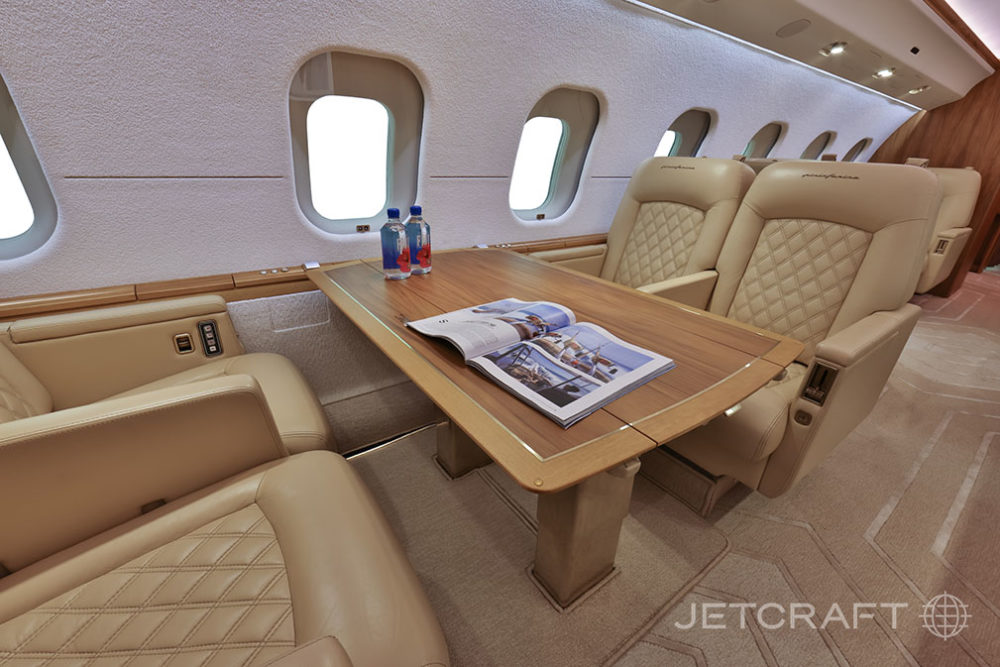

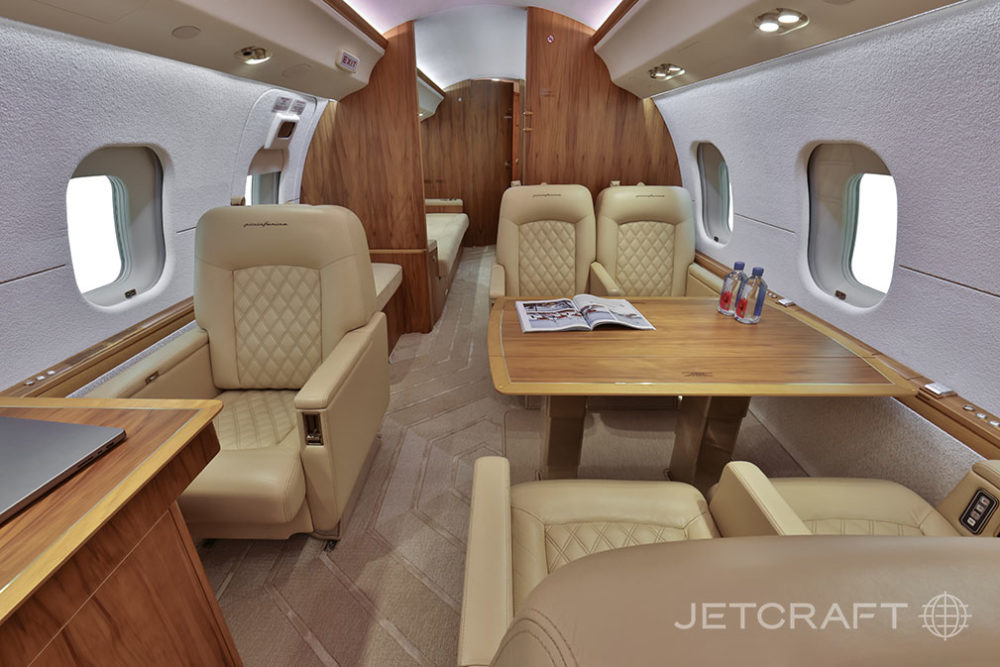

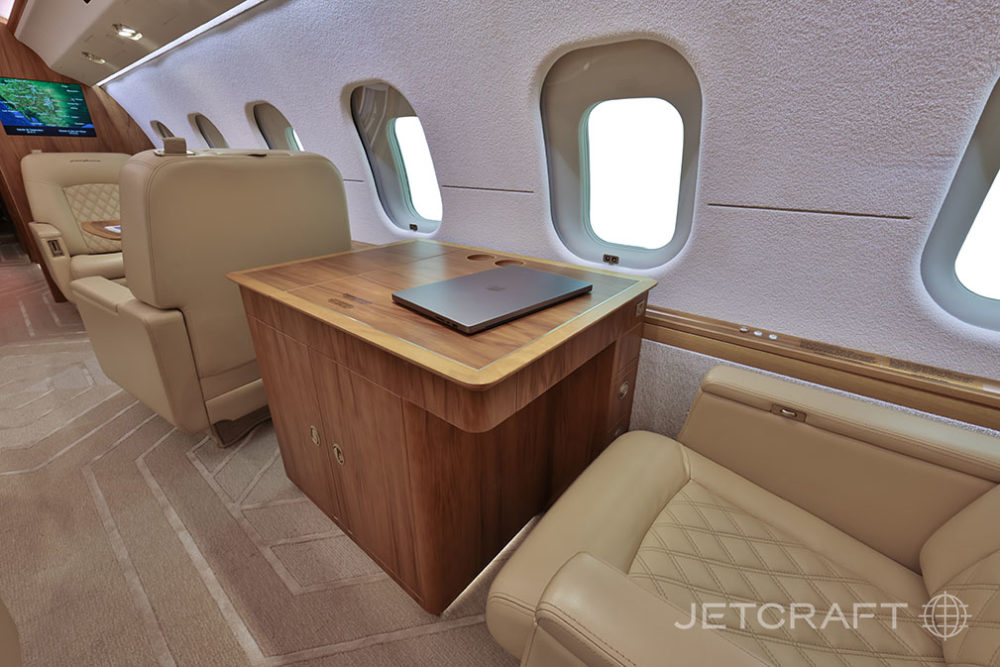

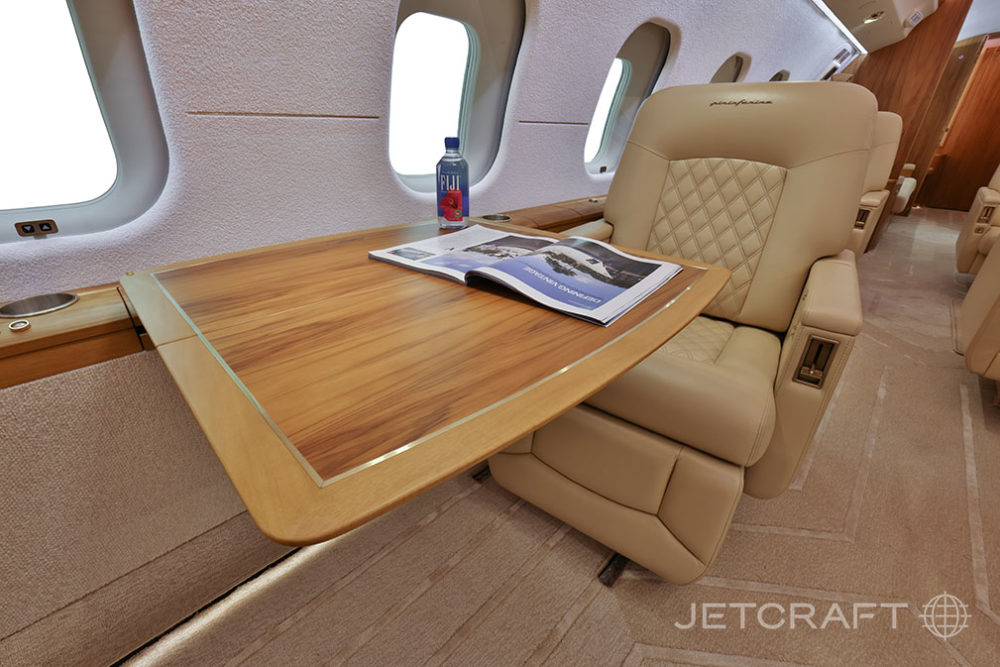

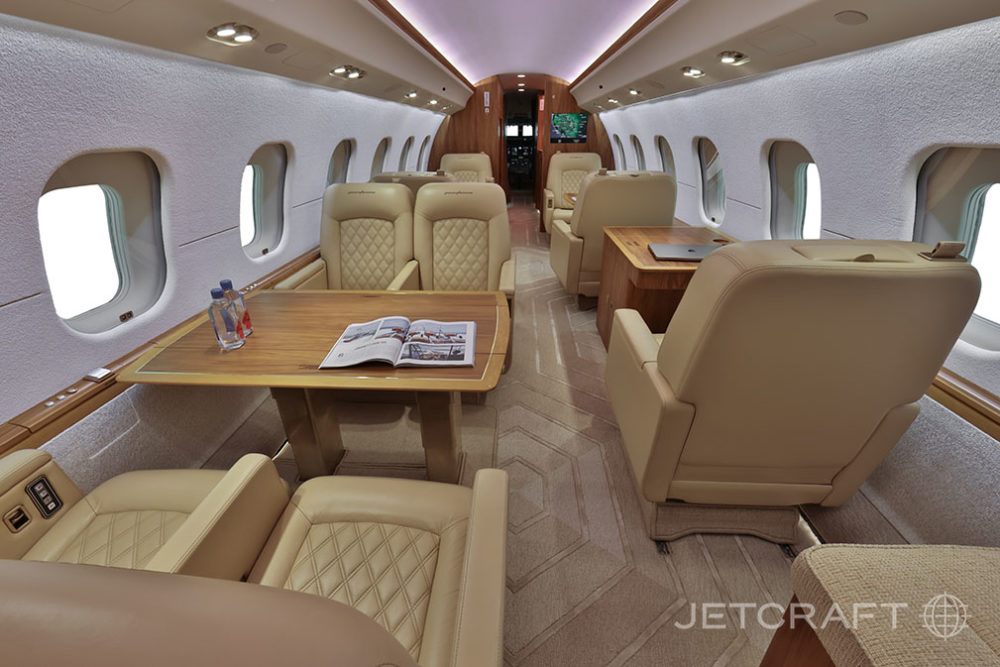

Mid Cabin Configuration | Four (4) Place Conference Group Opposite One (1) Single Seat w/ Workstation |

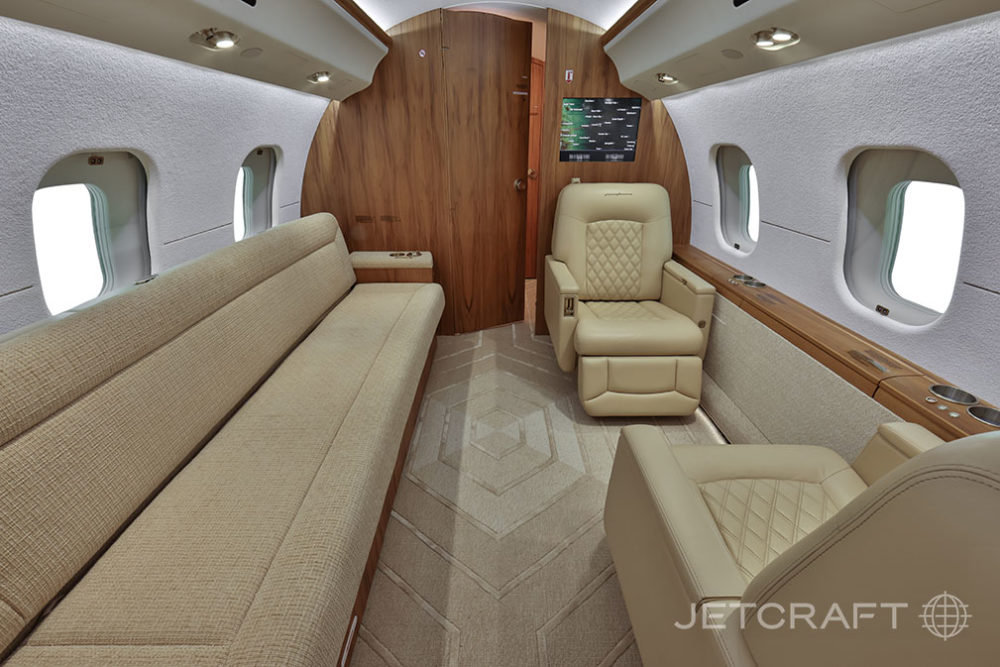

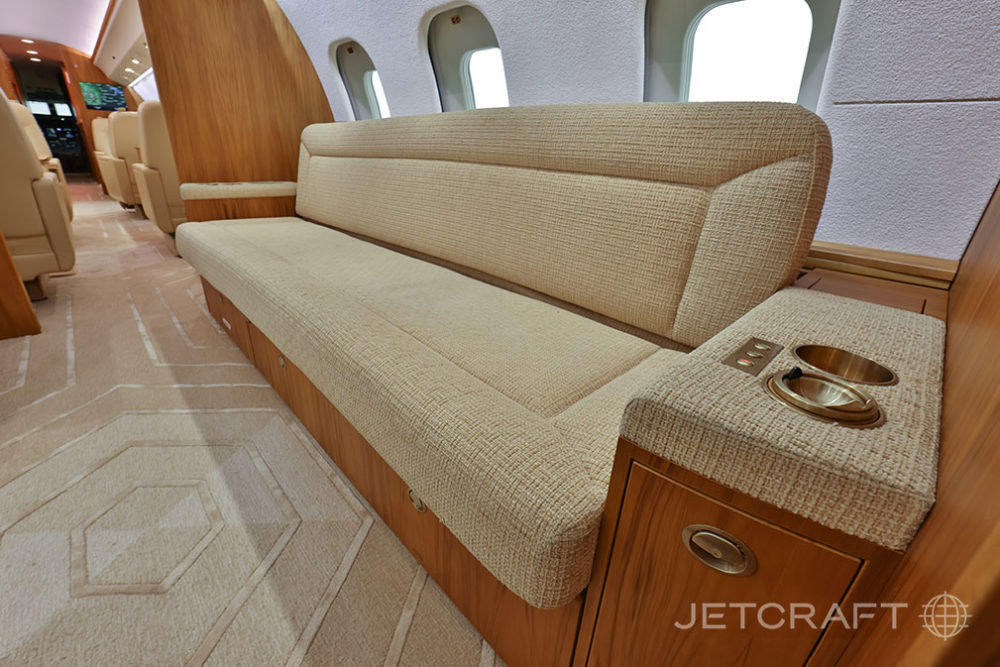

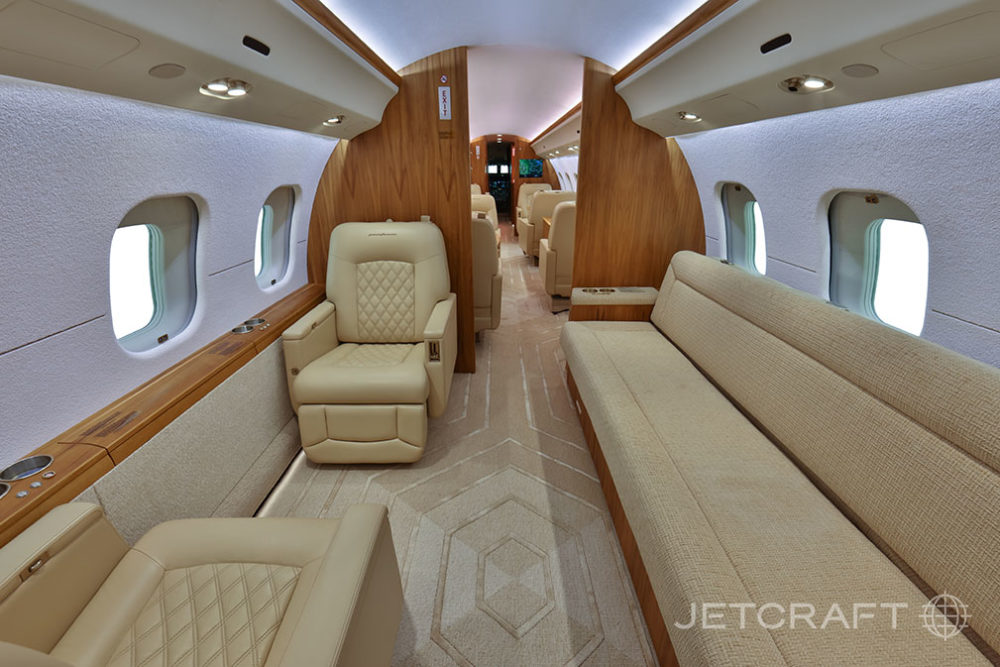

Aft Cabin Configuration | Two (2) Place Club Opposite a Three (3) Place Divan (When Mid-Cabin Bulkhead is removed) |
Sleeping Configuration | Four (4) Jet Beds For Sleeping Up To Six (6) Passengers |

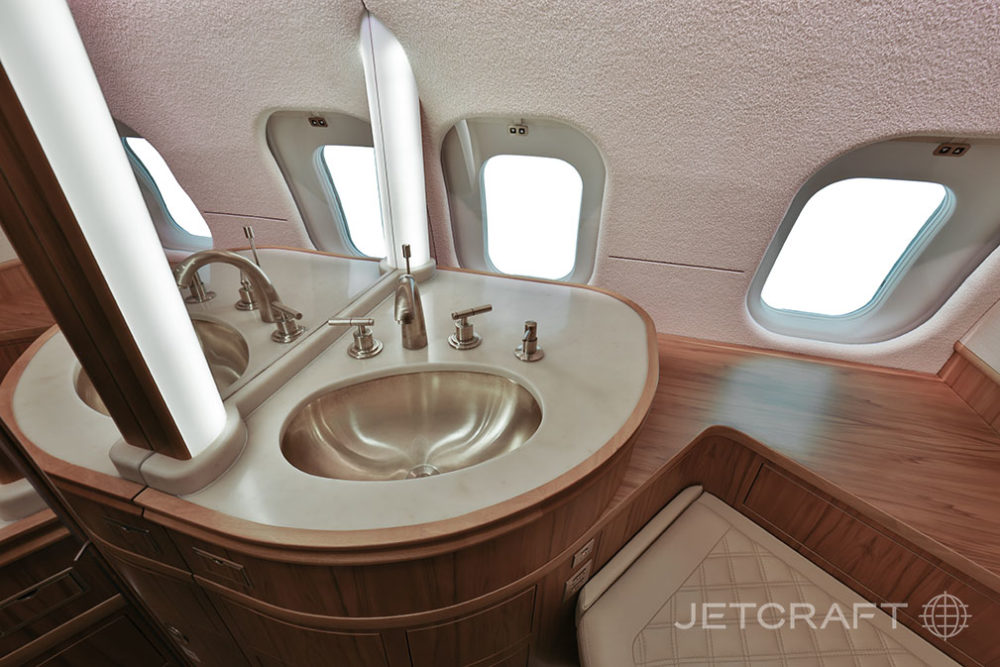

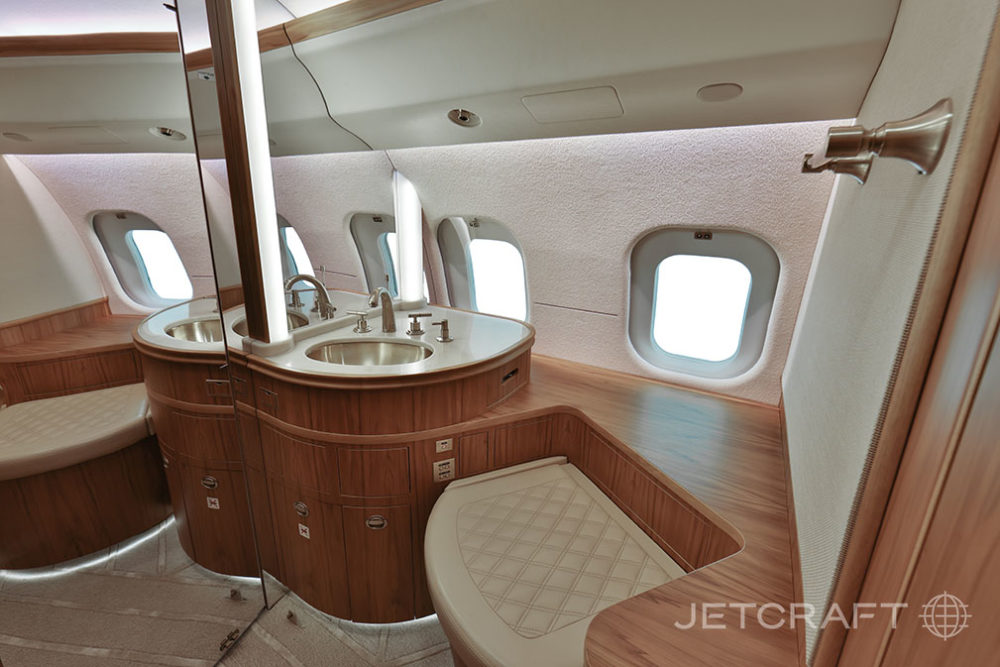

Lavatory Location(s) | Forward Crew and Aft Executive |

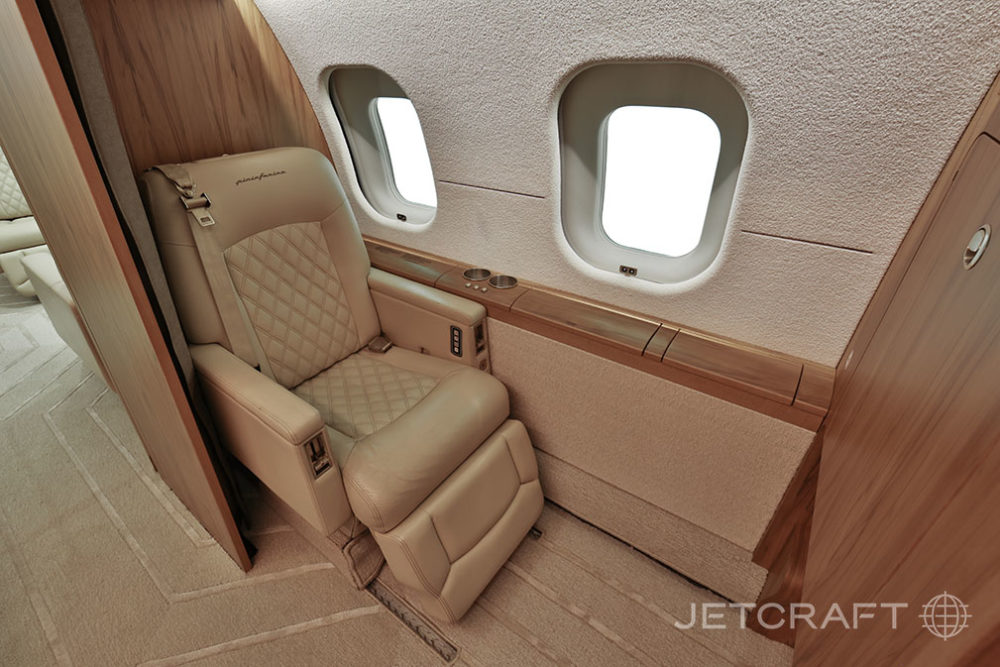

Crew Rest | Forward |
Last Refurbishment | Cabin Woodwork Refurbishment in August 2015 at Ruag |
Displays | Forward and Aft Bulkhead Displays |
Airshow System | Collins Airshow w/ Moving Maps |

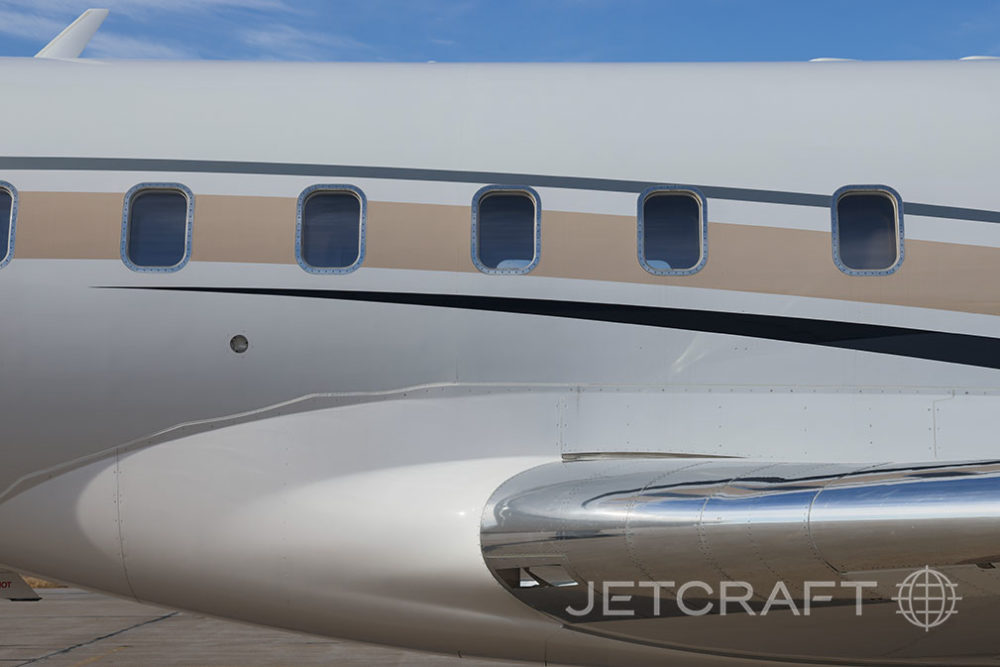

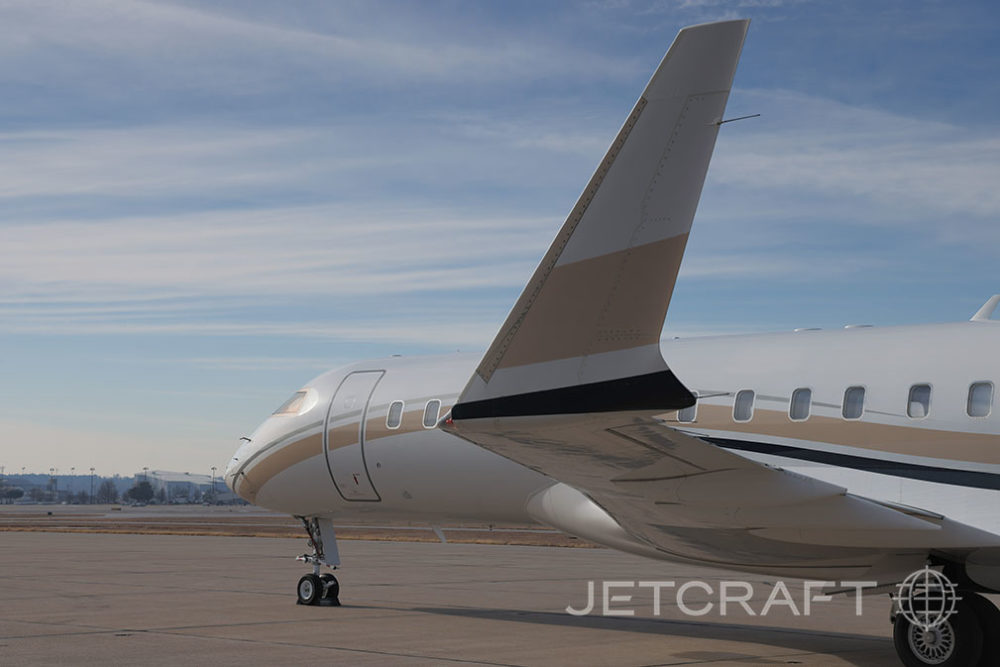

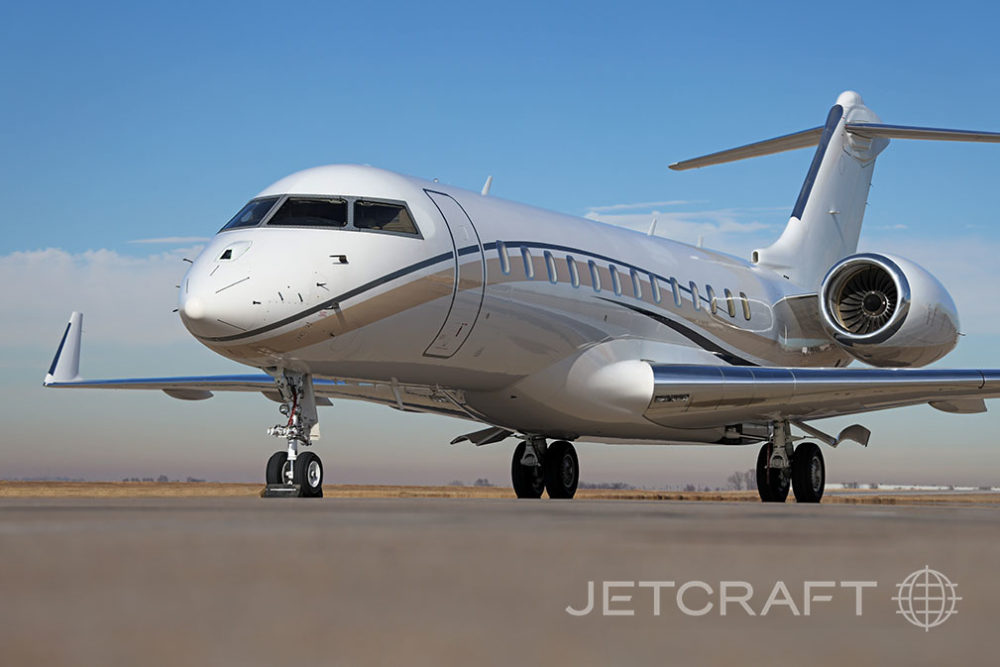

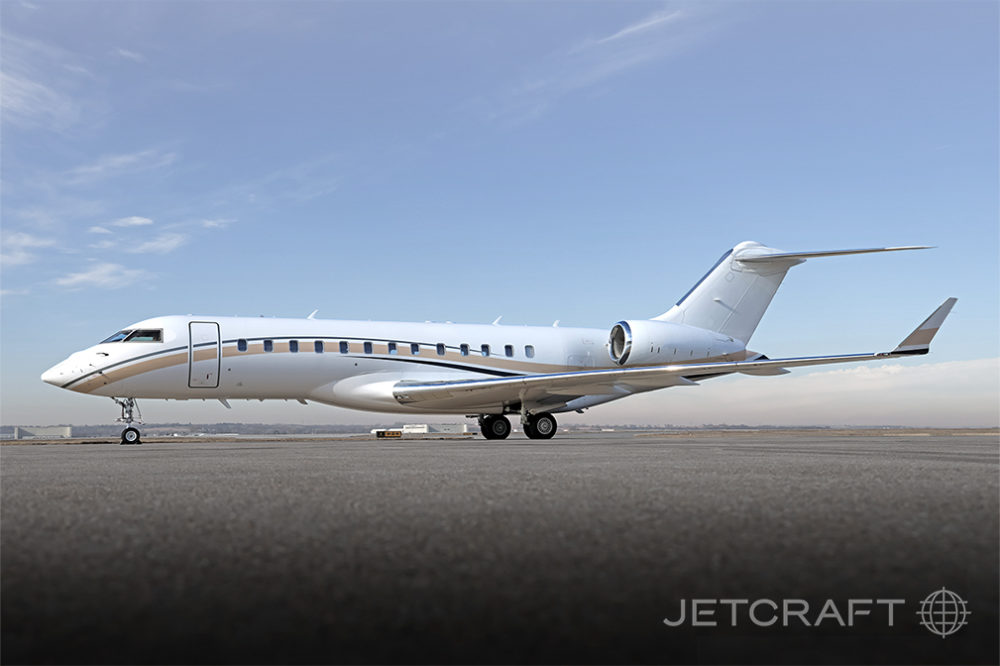

Base Paint Color(s) | Overall White |
Stripe Color(s) | Beige and Gray |
Last Refurbishment | Original Completion |
Click here to view the online range map. To receive a more detailed custom range report including detailed aircraft comparisons, contact us at +1 919 941 8400 or [email protected].
Inspection | Last Performed | Next Due |
15 Month | February 2023 | July 2024 |
30 Month | February 2023 | October 2025 |
60 Month | February 2023 | April 2028 |
120 Month | December 2018 | April 2028 |
180 Month | February 2023 | April 2038 |
SB700-11-020 – Increased Maximum Take-Off Weight (MTOW) to 99,500 lbs.
SB700-31-034 Rev 2 – Batch 3.3 Avionic Software Upgrade
SB700-34-053 Rev 3 – FANS 1/A+ and RNP 4
SB700-34-054 Rev 2 – Introduction of SBAS with LPV Approach Capability
SB700-31-020 Rev 2 (Part A & B) Flight Data Recording System – Installation of the Force Transducer Units and Activation of the Crew Force Measuring System
Phone System | Iridium ICS-200 System |
Internet | Jet ConneX – Ka-Band |
