Total Time Since New | 5,721 Hours (as of January 9, 2023) |
Total Landings Since New | 3,482 Landings |
Airworthiness Date | 21 June 2008 |
Home Base | Valencia, Spain |
Program Coverage | ProParts |
Maintenance Tracking | CESCOM |
Certification | EASA EU-OPS1 |
Left Engine | Right Engine | |
Description | Pratt & Whitney PW306C | |
Serial Numbers | CG0433 | CG0434 |
Total Hours Since New | 5,721 Hours | 5,721 Hours |
Total Cycles Since New | 3,482 Cycles | 3,482 Cycles |
Program Coverage | P&W ESP Silver Lite |
Description | Honeywell RE-100 (CS) |
Serial Number | P-388 |
APU Total Time Since New | 4,338 Hours |
Program Coverage | Honeywell MSP |

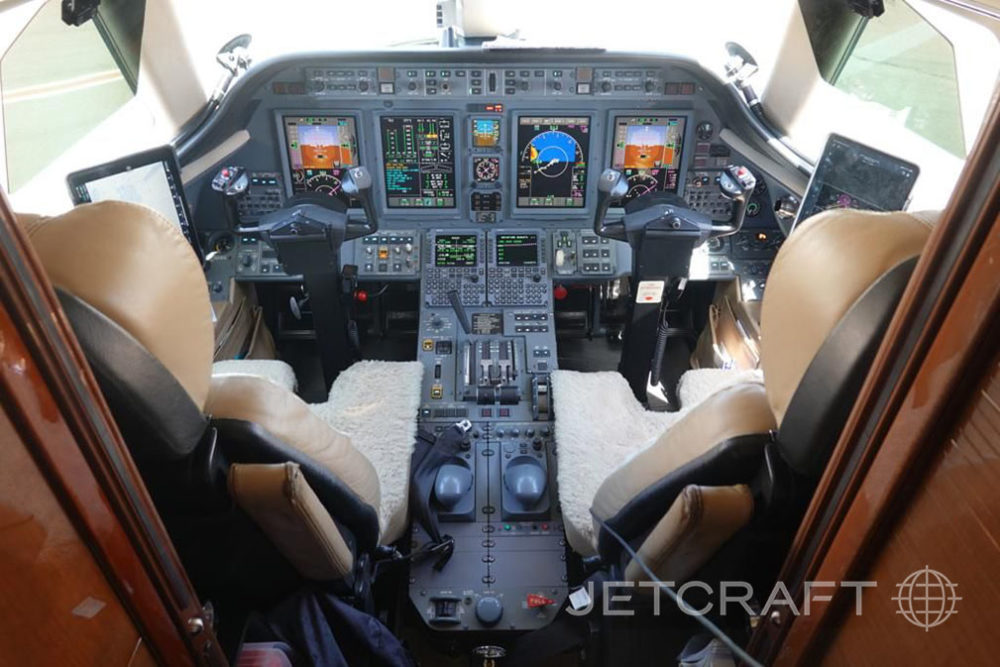

The Cessna Citation Sovereign is equipped with an integrated Honeywell Primus Epic avionics suite. A general summary of this aircraft’s avionics suite is as follows (Items in bold indicate optional/added equipment):
Type of Unit | Quantity | Description | ||
EFIS (Electronic Flight Instrument System) | 4-Tube | Honeywell DU-1080 8”x10”MFD | ||
FMS (Flight Management System | Dual | Honeywell MC-850 | ||
GPS (Global Positioning System) | Dual | Honeywell MC-850 | ||
CDU (Control Display Unit) | Dual | Honeywell CC-950 | ||
ADC (Air Data Computer) | Dual | Honeywell AZ-200 | ||
NAV (Navigation Radio) | Dual | Honeywell NV-875A | ||
RMI (Radio Magnetic Indicator) | Dual | Honeywell MRC-855 | ||
DME (Distance Measuring Equipment) | Dual | Honeywell DH-855 | ||
ADF (Automatic Direction Finder) | Single | Honeywell DF-855 | ||
AHC (Attitude Heading Computer) | Dual | Rockwell Collins AHC-3000 | ||
AFCS (Auto Flight Control System) | Single | Honeywell GP-400 | ||
AUDIO | Dual | Honeywell AV-850 | ||
VHF COM (Very High Freq. Communication) | Dual | Honeywell TR-865A | ||
HF COM (High Freq. Communications) | Single | Honeywell KRX-1053 | ||
SATCOM (Satellite Communications) | Single | Iridium Aircell ST-3100 | ||
SELCAL (Selective Calling) | Single | Coltech CSD-714 | ||
AFIS (Airborne Flight Information System) | Single | XM Weather | ||
RADAR | Single | Honeywell Primus WU-880 Color Radar | ||
RADIO ALT (Radio Altimeter) | Dual | Honeywell RT-300 | ||
XPNDR (Transponder) | Single | Honeywell XS-857A Mode S | ||
EGPWS (Enhanced Ground Proximity Warning System) | Single | Honeywell EGP-001 | ||
TCAS (Traffic Collision Avoidance System) | Single | Honeywell TCAS 2000 Change 7.1 | ||
CVR (Cockpit Voice Recorder | Single | L-3 Com 2100-1020-02 | ||
FDR (Flight Data Recorder) | Single | L-3 Com FA2100 FDR |
Description | |
Number of Passengers | Eight (8) |
Galley Location | Forward |

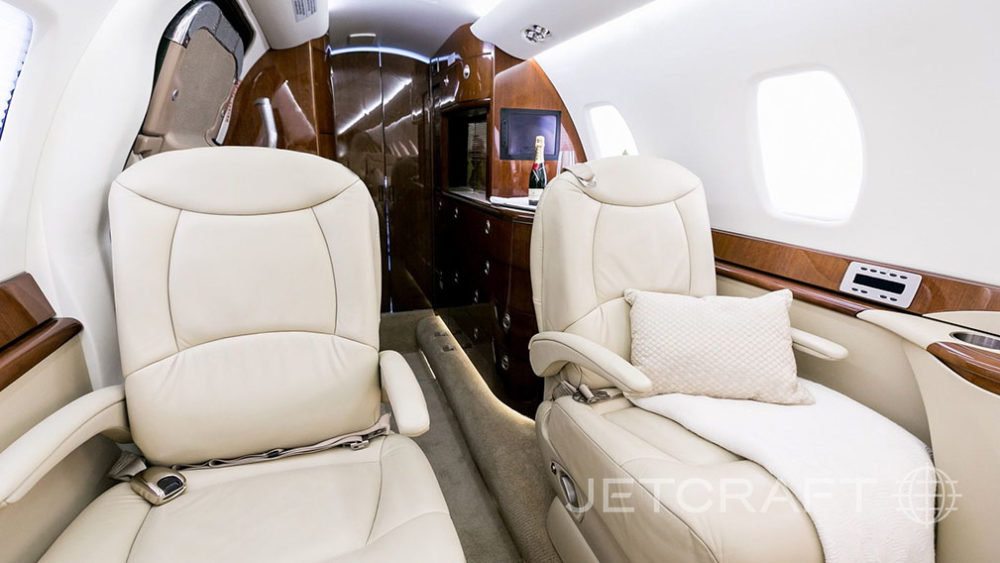

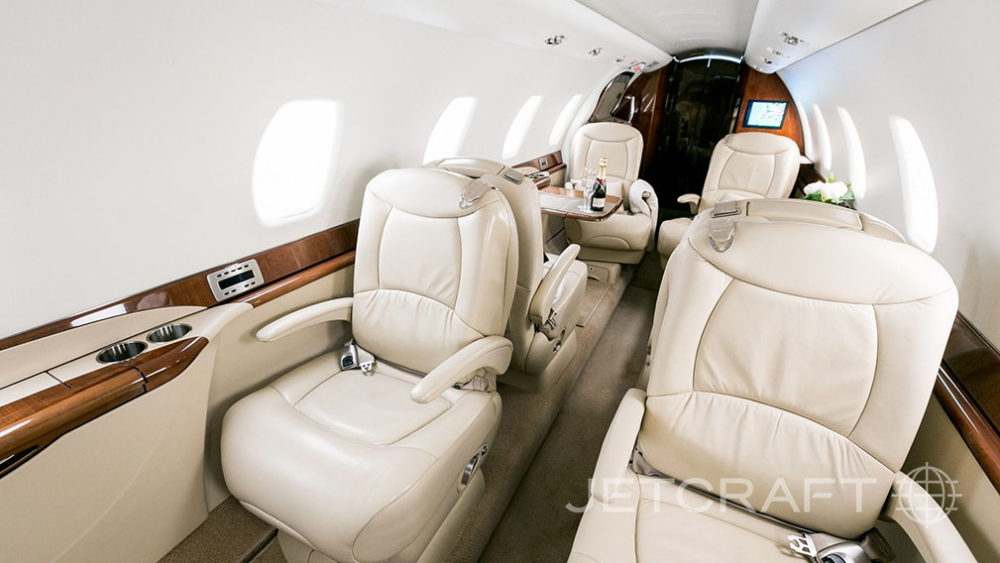

Cabin Configuration | Two (2) Sets of Four (4) Club Seats With Executive Tables |

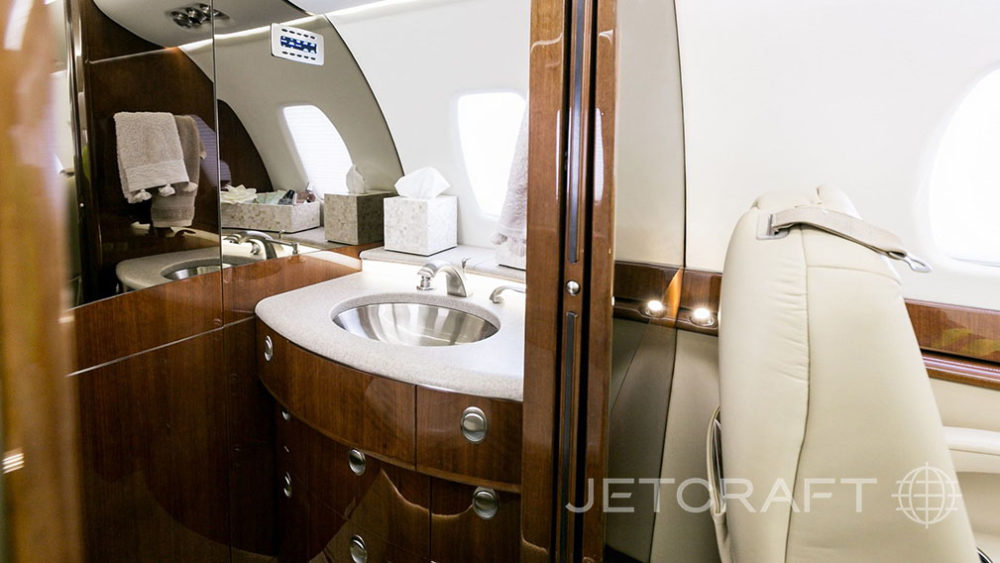

Lavatory Location | Aft With Hot/Cold Water Vanity Unit, and Closet For Garments, and Bags |
Galley Equipment: | Deluxe With RH Extended Refreshment Center w/ Two Hot Beverage Tanks |
Last Refurbishment | February 2018 |
Base Paint Colors | Sherwood Green above the Window Line and Oyster White below |
Stripe Colors | Gold and Black Stripes between |
Last Painted Date | October 2018 |
Type of Unit | Quantity | Description |
Display/TV Monitors | Dual | 15” Monitors |
Airshow System | Single | Airshow 400 |
Contact Us at +1 919 941 8400 or [email protected] to request a custom range report including detailed aircraft comparisons.
Inspection | Last Performed | Next Due |
96Mo (8C) Inspection | June 2016 | June 2024 |
Type of Unit | Description |
In Flight Phone | Iridium Aircell ST-3100 |
Type of Unit | Description | |
Emergency Locator Transmitter | Kannad 406 AF | |
Medevac Equipment | LifePort Inc. Patient Loading Utility System (PLUS), Dual AeroSled TS with Mattresses, Loading & Cross-over Ramp |
