| Total Time Since New | 7,428 Hours (as of Jan 07th 2023) |
| Total Landings Since New | 2,787 Landings |
| Entry into Service Date | 1997 |
| Program Coverage | MPP |
| Maintenance Tracking | MYCMP |
| Certification | FAA Part 91 |
| Left Engine | Right Engine | ||
| Description | Rolls-Royce BR700-710A1-10 | ||
| Serial Number(s) | 11171 | 11172 | |
| Total Hours Since New | 7,388 Hours | 7,388 Hours | |
| Total Cycles Since New | 2,768 Cycles | 2,768 Cycles | |
| HSI Due / Overhaul Due | 8,000 FH | ||
| Program Coverage | Rolls-Royce CorporateCare | ||
| Description | Honeywell RE-220 |
| Serial Number | P-134 |
| APU Total Time Since New | 5,432 Hours |
| HSI Due / Overhaul Due | On Condition |
| Program Coverage | None |

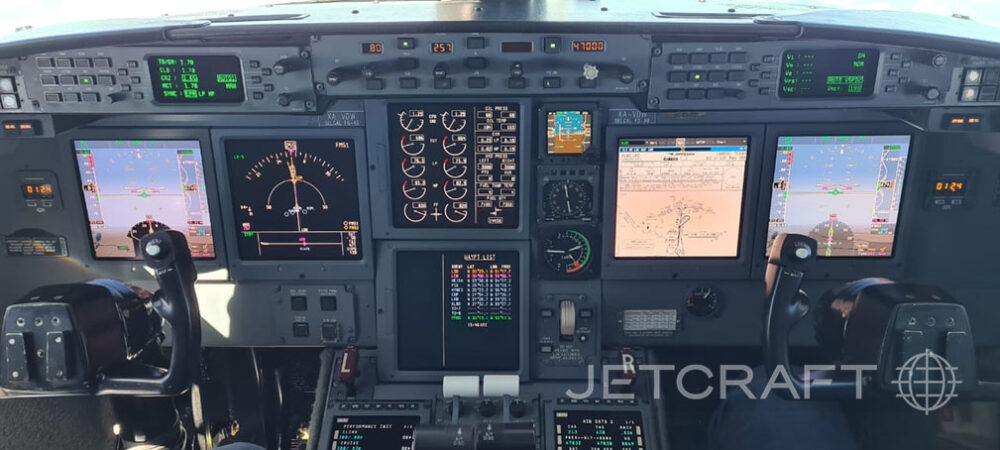

The Gulfstream GV is equipped with an integrated Honeywell SPZ-8500 avionics suite. A general summary of this aircraft’s avionics suite is as follows:
| Type of Unit | Quantity | Unit Description |
| EFIS (Electronic Flight Instrument System) | Four | DU885 SW PEAF V1-1.01/v2.00.02 |
| FMS (Flight Management System | Dual | IAC 6.1 SW with SBAS/LPV/GPS |
| CDU (Central Display Unit) | Triple | Honeywell CD-830 G7830-03 |
| IRS (Inertial Reference System) | Triple | Honeywell LASEREF IV IR-300 |
| GPS (Global Positioning System) | Dual | Honeywell GR-550 |
| ADC (Air Data Computer) | Triple | Honeywell AZ-850 |
| NAV (Navigation Radio) | Dual | Honeywell VIR-432 |
| DAU (Data Acquisition Unit) | Dual | Honeywell DA-800 |
| IAC (Integrated Avionic Computer) | Dual | Honeywell IC-810E |
| DME (Distance Measuring Equipment) | Dual | Collins DME-442 |
| HUD (Head Up Display) | Single | Honeywell HG-200 |
| SVS (Synthetic Vision System) | Dual | PEAF (PFD1 and PFD2) |
| EFB (Electronic Flight Bag) | Dual | ND No 2 and ND No 4 |
| ADF (Automatic Direction Finder) | Dual | Collins ADF-462 |
| A/P (Autopilot) | Dual | Honeywell SPZ-8500 |
| VHF COM (Very High Freq. Communications) | Triple | Collins VHF (422D/422B) |
| HF COM (High Freq. Communications) | Dual | Collins HF-9000 Antenna w/ SELCAL |
| SATCOM (Satellite Communications) | Single | Honeywell SDU 75166118-27010 |
| SELCAL (Selective Calling System) | Dual | HF and VHF |
| ACARS (Aircraft Comm. Addressing and Recording Sys.) | Dual | Honeywell CMU |
| WX RAD (Weather Radar) | Single | Honeywell XMD-157 |
| RAD ALT (Radar Altimeter) | Dual | Collins RT-300 |
| XPNDR (Transponder) | Dual | Collins Mode S TDR-94D |
| GPWS (Ground Proximity Warning System) | Single | Honeywell EGPWS GLU-920 |
| TCAS (Traffic Collision Avoidance System) | Single | TCAS 7.1 |
| CVR (Cockpit Voice Recorder) | Single | L3 Aviation FA2100 |
| FDR (Flight Data Recorder) | Single | L3 Aviation ULB |
| ELT (Emergency Locator Transmitter) | Single | 453-0406 |
| LSS (Lightning Sensor System) | Single | Honeywell LP-850 |
| Description | |
| Number of Passengers | 16 passengers |
| Galley Location | Fwd LS |

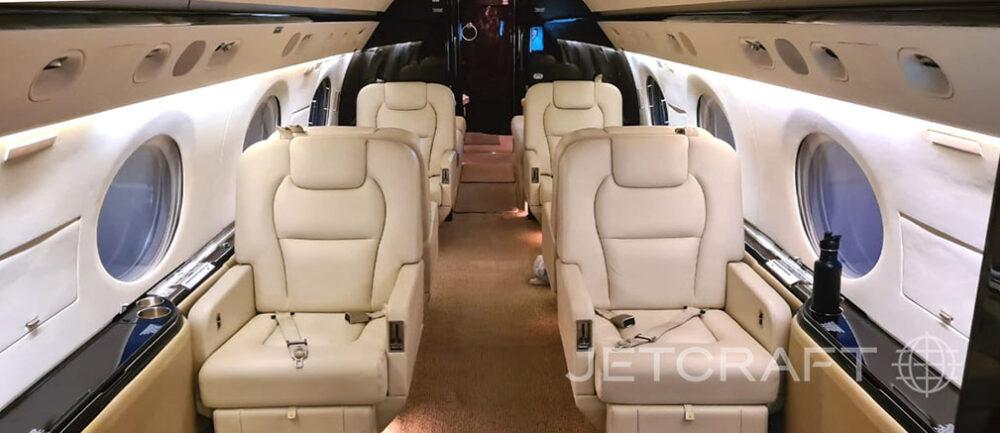

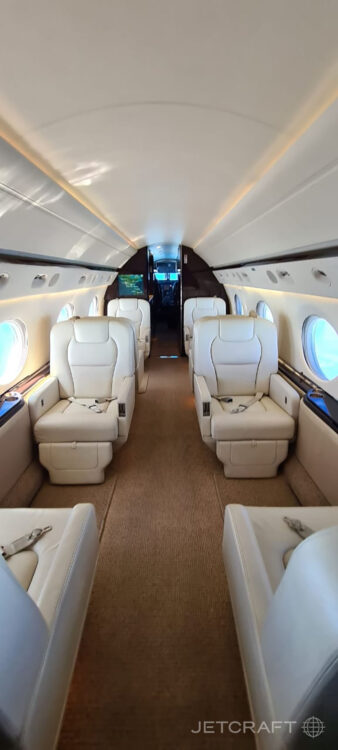

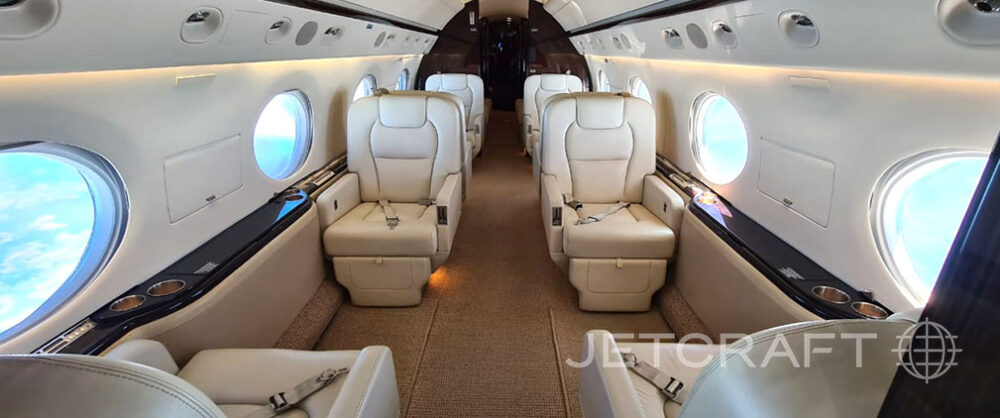

| Forward Cabin Configuration | 4 Single Club Seats |
| Mid Cabin Configuration | 4 Single Club Seats |

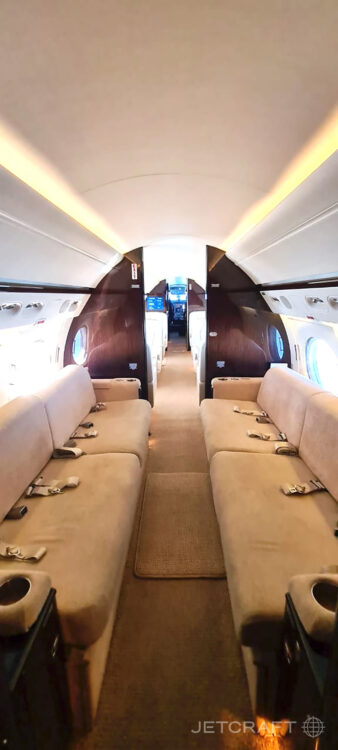

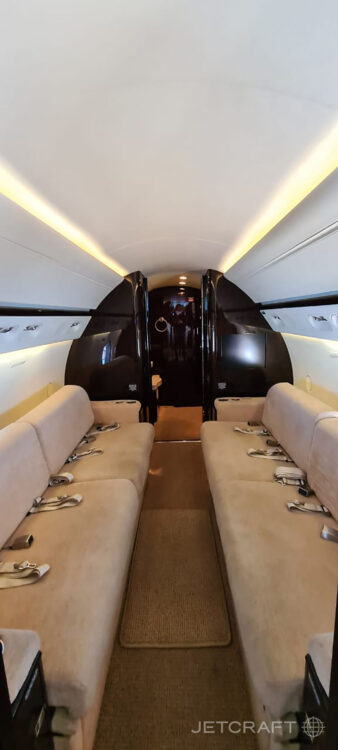

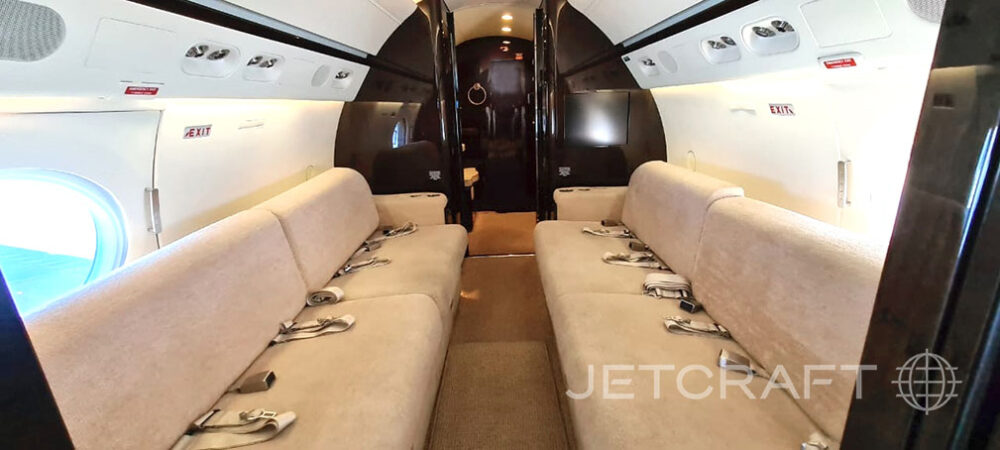

| Aft Cabin Configuration | 2 Four Place facing Divans |

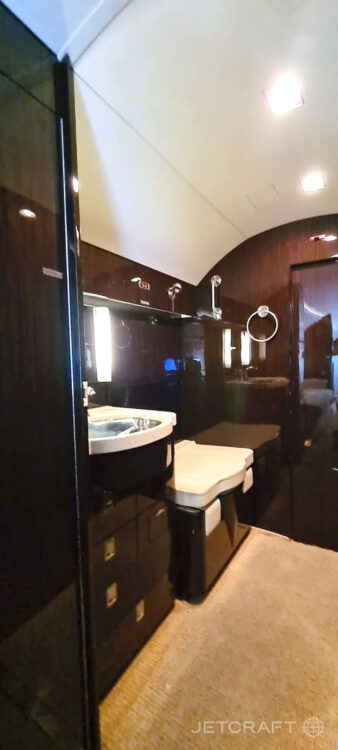

| Lavatory Location(s) | Fwd & Aft |
| Crew Rest | Yes |
| Jumpseat | Yes |
| Other Notable Feature(s) | |
| Last Refurbished Date | 2015 at Gulfstream Dallas |
| Galley Equipment: | |
| Microwave | Yes |
| High Temp Oven | Yes |
| Coffee/Espresso Maker | Yes |
| Display / TV Monitor(s) | 2 TV Monitors 20” |
| Personal / Plug-In Monitor(s) | 8 Individual Monitors + 1 Individual Monitor in Crew Rest |
| Airshow System | Yes |
| Cabin Management System | Pacific System (Rockwell Collins) |
| Video Camera | Fwd View, Rear View, Cockpit View, H-Stab Fwd View |

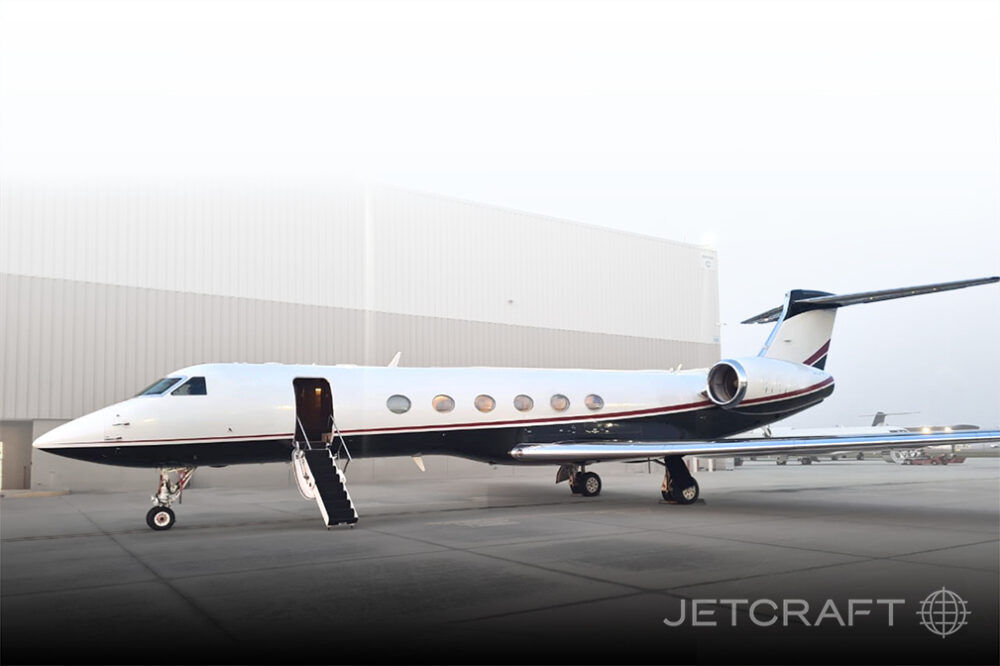

| Base Paint Color(s) | White | |
| Stripe Color(s) | Red & Black | |
| Last Painted Date | 2009 |
Contact Us at +1 919 941 8400 or [email protected] to request a custom range report including detailed aircraft comparisons.
| Inspection | Last Performed | Next Due |
| 12 Month | February 2023 | February 2024 |
| 24 Month | February 2023 | February 2025 |
| 36 Month | February 2023 | February 2026 |
| 48 Month | February 2023 | February 2027 |
| 72 Month | February 2023 | February 2029 |
| 96 Month | February 2023 | February 2031 |
ASC 183A: Electronic Display System – DU-885 Liquid Crystal Display Installation. Data Loader DL 1000
– C/W July, 2012
ASC 188B (Part 2): TCAS 7.1
– Installed TCAS modified
ASC 209: FMS 6.1 with SBAS/LPV GPS
– Installed new Global Navigation System Sensors Units Installed modified NZ2010
– Installed modified IACs Installed new GPS Antennas CW March, 2015.
FANS 1/A (AFN, CPDLC, ADS-C)
– CMU MKIII + PRINTER + Cockpit Voice Recorder (CVR) Model FA2100 CW May, 2016.
PDSV-SVS
– PRIMUS ELITE ADVANCED FEATURES PEAF
– Installed Simbol Generators Modified
– Installed DU-885 Modified
– Installed New CDUs CD-830 IAW
– STC ST04039AT-D, CW Jan, 2017
ASC 214: Automatic Dependent Surveillance Broadcast Out ADS-B Out Version 2
– Installed ATC Transponders Modified, CW Jul, 2017.
TALON AEROSPACE LED REPLACEMENT
– Installed LED Lamps Landing, Taxi and Runway Lights. Applied Jan, 2019
CB 230: MODIFICATION DU-885 Software Update – V1.10.01/ V2.00.02
– Installed DU-885
– Installed IACs Modified
– Installed NZ2010 Modified
– Software Update
SATCOM DIRECT ROUTER (SDR) Upgrade
– Installed new SDR
– Installed new Configuration Module, new WiFi Antenna and a new 3G/4G Antenna
– IAW STC ST11071SC
– Complied with Jan, 2018
| RVSM | ADS-B |
| FANS 1/A | |
| CPDLC |
| High Speed Internet | Gogo Business Aviation – ATG-5000/Swift Broadband with SDR and Global One Number (Satcom Direct), AMT50 |
| Phone System | Honeywell LM, MCS-4000/MCS-7000 Multi-Channel Satcom System |
