Total Time Since New | 4,053 Hours (as of January 19, 2023) |
Total Landings Since New | 2,241 Landings |
Home Base | Malaga, Spain |
Maintenance Tracking | CAMP |
Certification | Currently Operated – EU OPS-Part CAT |
Left Engine | Right Engine | |
Description | Honeywell TFE731-5BR-1H | |
Serial Number(s) | P-129445 | P-129442 |
Total Hours Since New | 4,053 Hours | 4,053 Hours |
Total Cycles Since New | 2,241 Cycles | 2,241 Cycles |
Program Coverage | MSP Gold |
Description | Honeywell GTCP 36-150W |
Serial Number | P-1093 |
APU Total Time Since New | 2,485 Hours |
Program Coverage | MSP Gold |

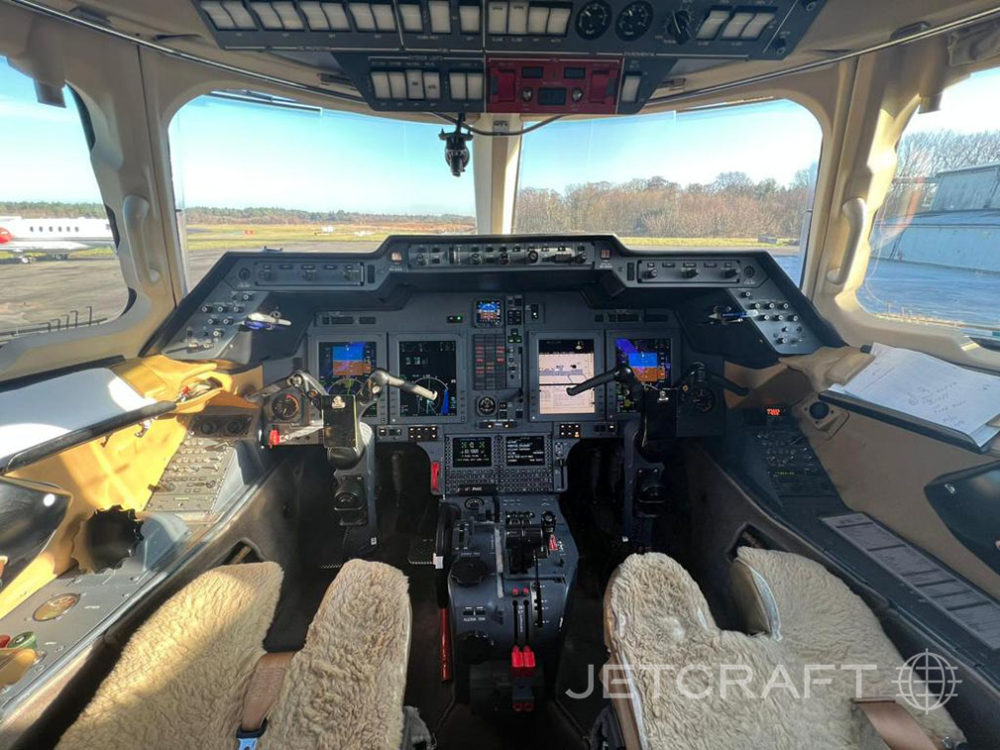

The Hawker 750 is equipped with an integrated Rockwell Collins Pro Line 21 avionics suite. A general summary of this aircraft’s avionics suite is as follows:
Type of Unit | Quantity | Unit Description | ||
FMS (Flight Management System) | Dual | Collins FMS-6000 | ||
GPS (Global Positioning System) | Dual | Collins GPS-4000A | ||
ADC (Air Data Computer) | Dual | Collins ADC 3000 | ||
NAV (Navigation Radio) | Dual | Collins NAV-4000 & NAV-4500 | ||
DME (Distance Measuring Equipment) | Dual | Collins DME-4000 | ||
ADF (Automatic Direction Finder) | Single | Collins NAV-4000 | ||
A/P (Autopilot) | Dual | Collins FGC-3000 | ||
VHF COM (Very High Freq. Communication) | Triple | Collins VHF-4000 | ||
HF COM (High Freq. Communications) | Single | Collins HF-9031A w/ Selcal | ||
RADAR | Single | Collins RTA-858 | ||
AHRS (Attitude & Heading Reference System) | Dual | Collins AHC-3000 | ||
XPNDR (Transponder) | Dual | Collins TDR-94D | ||
EGPWS (Enhanced Ground Proximity Warning System) | Single | Honeywell Mark V | ||
TCAS (Traffic Collision Avoidance System) | Single | TCAS II w/ Change 7.1 | ||
CVR (Cockpit Voice Recorder) | Single | Universal Avionics CVR-120 (120 mn) | ||
FDR (Flight Data Recorder) | Single | Honeywell AR-256 SSFDR | ||
ELT (Emergency Locator Transmitter) | Single | Artex C406-N |
Description | |
Number of Passengers | Eight (8) + One (1) |

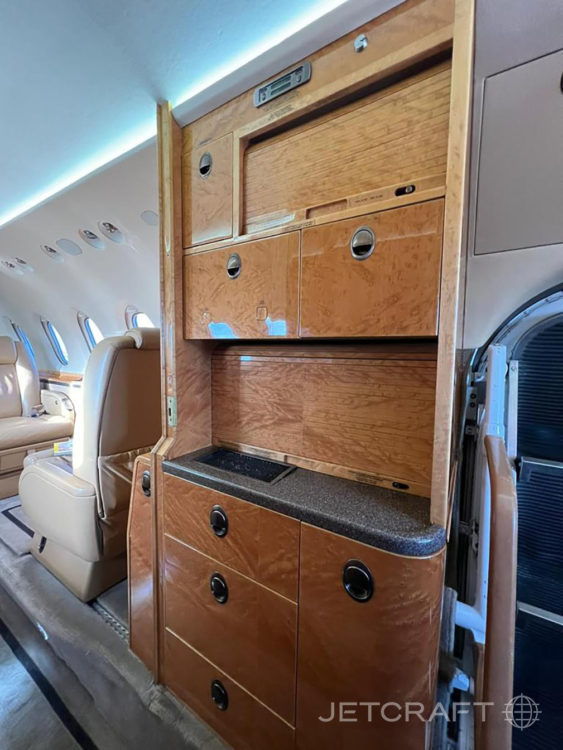

Galley Location | Fwd |

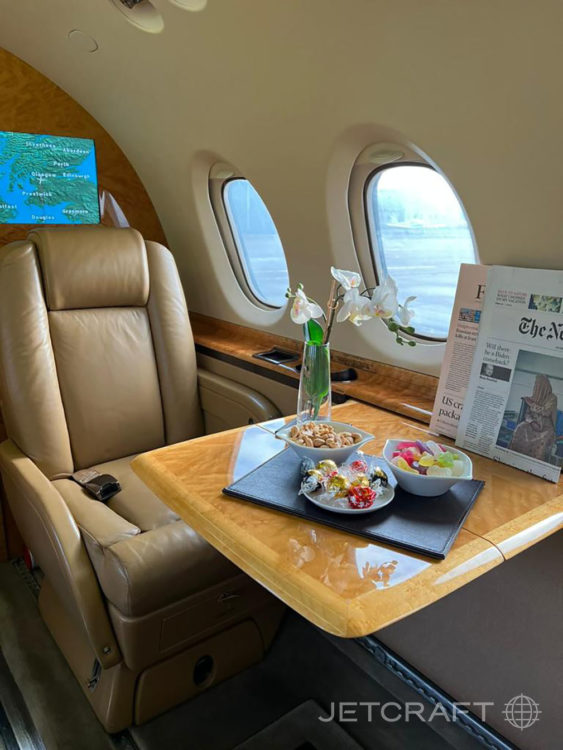

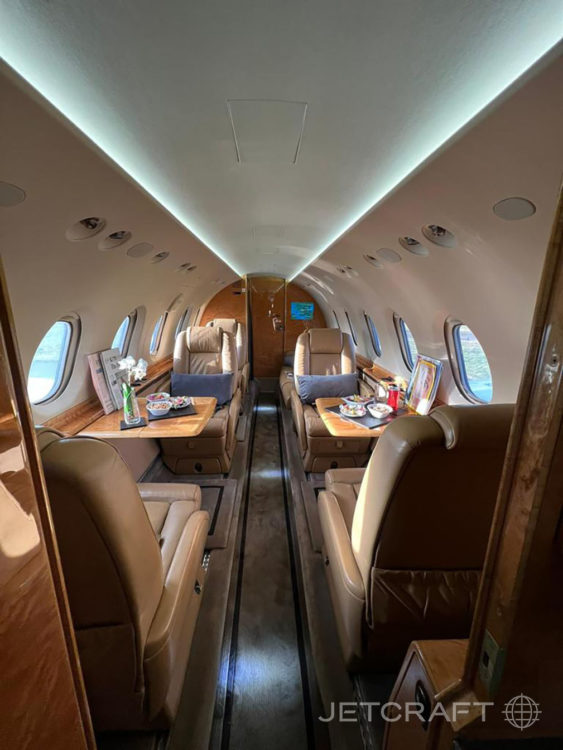

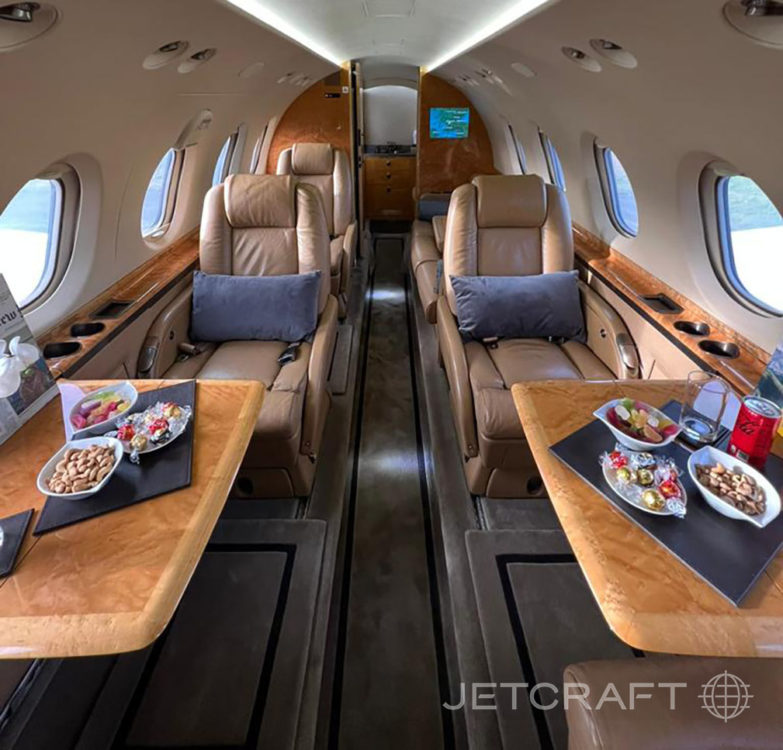

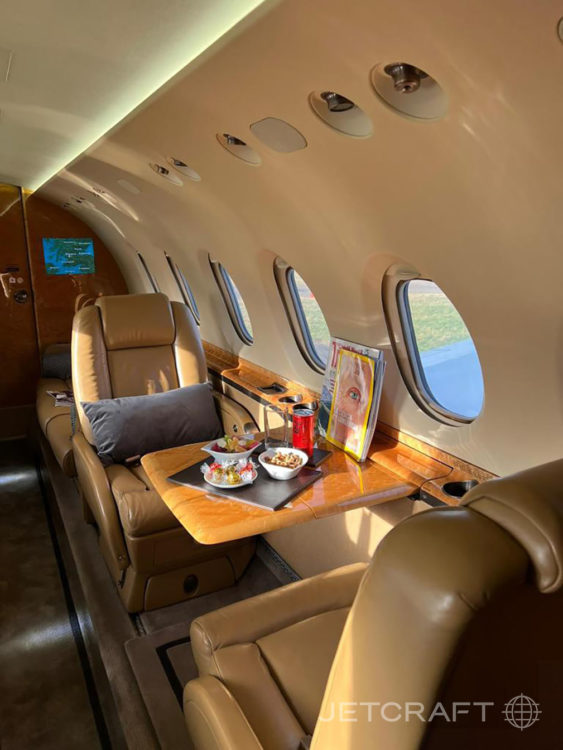

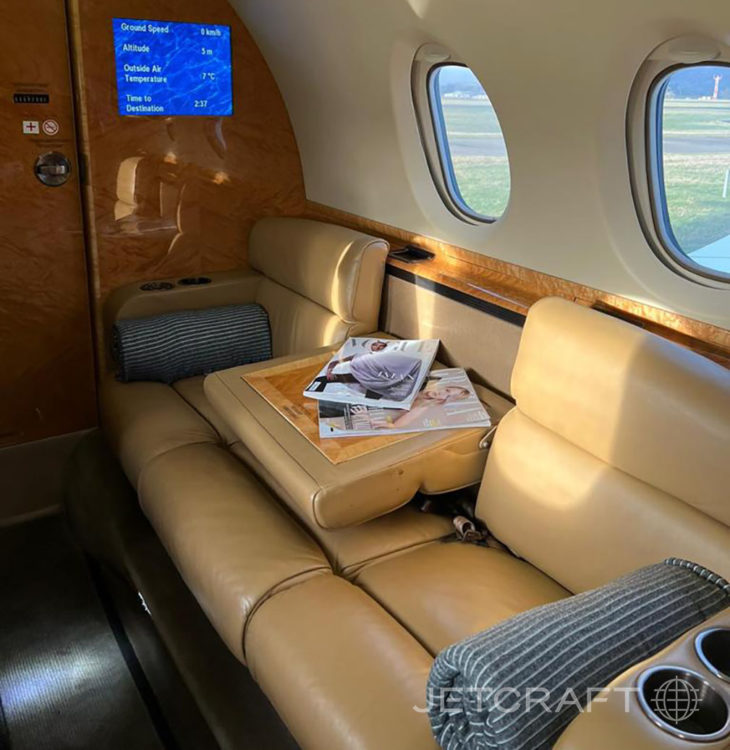

Forward Cabin Configuration | Four (4) Executive Seats |
Aft Cabin Configuration | L/H Three (3) Place Divan Opposite Single Seat |

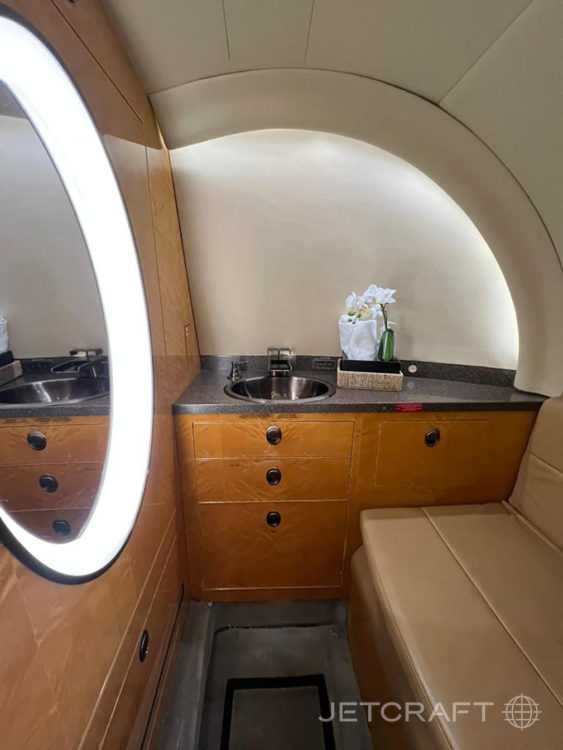

Lavatory Location | Aft Lavatory with Belted Seat |
Other Notable Features | Power Outlet and Auxiliary A/V Package – 220 |
|
|
Galley Equipment: | Microwave Oven |
Last Refurbished Date | Partial Refurbishment: 2018 |

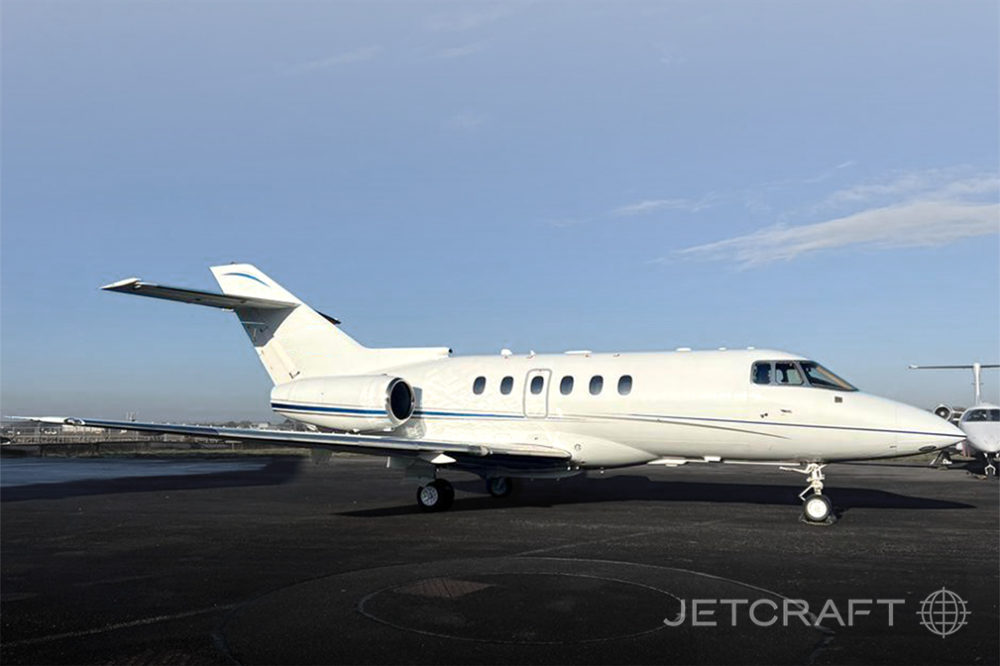

Base Paint Color | Matterhorn White |
Stripe Colors | Blue and Silver |
Last Painted Date | 2017 |
Type of Unit | Description |
Display/TV Monitors | 2 x 15” LCD Monitors |
Airshow System | Airshow 410 |
Contact Us at +1 919 941 8400 or [email protected] to request a custom range report including detailed aircraft comparisons.
Type of Unit | Description |
In Flight Phone | AirCell ST3100 Iridium Phone System w/ Cordless Cabin and Cockpit Handsets |
RVSM | RNP-1 |
8.33 Mhz | BRNAV / RNP 5 |
FM Immunity | MNPS |
