September 5, 2014

Citation XLS Overview (2003 – 2008)

Overview including differentiating features from other aircraft in its category

The Cessna Citation XLS is the second aircraft in the Citation Excel series. It is an updated version of the original Citation Excel (Model 560 XL). Upgraded Pratt & Whitney PW545B engines allow for an enhanced powerplant performance.

As of March 2014, the Citation XLS market is comprised of 38% pre-owned. The percentage for sale is 5.5% with 83% of that under an exclusive broker agreement and average days on the market are 369 days.

Brief History

The first delivery of the Citation XLS occurred in 2003. The series ended production in 2008. During that time, a total of 330 aircraft have been produced with all but one of those currently in operation.

Worldwide Appeal

There are 329 Citation XLS aircraft currently in operation worldwide with 238 wholly owned, 81 fractionally owned, and 10 in shared ownership. Of the 238 wholly owned Citation XLS aircraft in operation by continent, North America has the largest percentage at 57%, followed by Europe at 24% for a combined total of 81%. Also, 42% of the 329 Citation XLS jets in operation today are in fleet ownership with the largest fleet operator (NetJets) having 46 aircraft. Additionally, 11% of the Citation XLS jets are leased.


Highlights

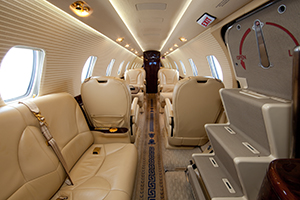

Citation_XLS fwd cabin JSPerformance

The Citation XLS is powered by two Pratt & Whitney PW545B engines each offering 3,991 pounds of thrust. The Citation XLS uses 211 gallons per hour (GPH). The range of the Citation XLS is 1,796 nm operating under NBAA IFR 4 passengers with available fuel.

Interior

The cabin volume for the Citation XLS is 461 cubic feet. Typical configuration features 9 passenger and 2 crew seats.

Design

The Citation XLS Maximum Take-Off Weight (MTOW) is 20,200 pounds (9,163 kg) with a maximum range of 1,841 nm.

Speed

Maximum Cruise Speed: 433 kts 802 km/h
Long-range Speed: 373 kts 691 km/h

Airfield Performance

Takeoff distance: 3,560 ft (1,085 m) (SL, ISA, MTOW)
Landing distance: 2,739 ft (835 m) (SL, ISA, MLW)

Operating Altitude

Maximum operating altitude: 45,000 ft (13,716 m)

Noise Level (EPNdB)

Takeoff: 72.2 Approach: 92.8 Lateral: 86.8

Weights

A. Maximum ramp weight: 20,400 lb (9,253 kg)
B. Maximum takeoff weight: 20,200 lb (9,163 kg)
C. Maximum landing weight: 18,700 lb (8,482 kg)
D. Maximum zero fuel weight: 15,100 lb (6,849 kg)
E. Standard basic operating weight: 12,800 lb (5,806 kg)

Avionics

Honeywell Primus 1000
